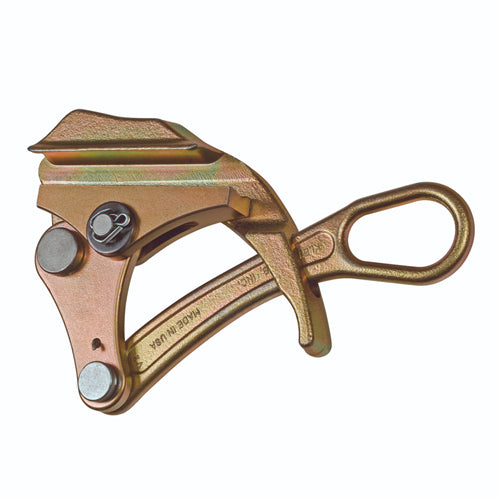

Klein Tools KT4500, Parallel Jaw Grip 4500 Series for ACSR
Regular price
$238.86
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed
- Round serrated jaw holds 0.18 to 0.60-Inch (4.57 to 15.20 mm) diameter cable range
- Spring closes grip on cable to hold the initial position
- Spring‐loaded for easy one‐handed operation
- Made in USA
- Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks
- Max Safe Load of 5000-Pound (2268 kg)
Warnings: Grips are to be used for temporary installation, not for permanent anchorage; When used on/or near energized lines, ground, insulate, or isolate grip before pulling; Do not exceed rated capacity; Always match proper size and type of grip to application; Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
| Type | Parallel Jaw Grip |
| Application | Wire Pulling |
| Special Features | Sawtooth Jaw Profile Resists Build-up |
| Overall Dimensions |
Length: 10.9'' (27.7 cm)
Height: 4.6'' (11.7 cm)
Width: 1.9'' (4.8 cm)
|
| Material | Steel |
| Cable Type |
ACSR, AAC, Copper
|
| Cable Diameter | 0.18'' to 0.6'' (4.57 to 15.2 mm) |
| Jaw Type |
Round
|
| Teeth Type |
Coarse
|
| Jaw Length |
4'' (10.2 cm)
|
| Maximum Safe Load |
5000 lb (2268 kg)
|
| Weight | 3.8 lb (1.7 kg) |
