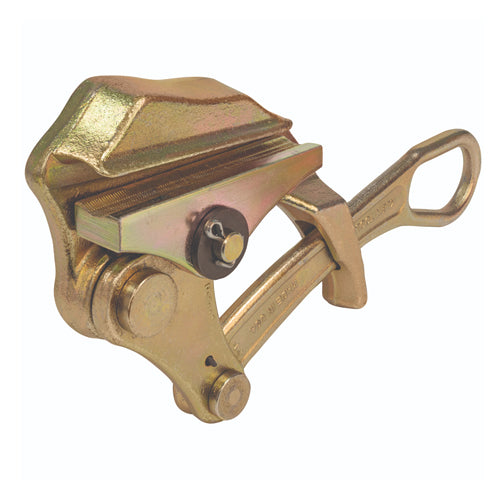

Klein Tools KT45005C, Parallel Jaw Grip 4500 Series for Guy Strand, EHS, Coated Cable
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
This versatile grip holds a wider range of ACSR cable sizes reducing the number of grips needed. Klein Parallel Jaw Grips are lightweight and compact. The round jaw holds 0.18 to 0.60-Inch diameter cable with a maximum safe load of 5000 lbs. Features a spring that closes the grip on the cable to maintain the initial position.Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks. Designed to work with galvanized guy wire
Warnings: Grips are to be used for temporary installation, not for permanent anchorage; When used on/or near energized lines, ground, insulate, or isolate grip before pulling; Do not exceed rated capacity; Always match proper size and type of grip to application; Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
| Type | Parallel Jaw Grip |
| Application | Wire Pulling |
| Special Features | Sawtooth Jaw Profile Ensures Optimal Grip Strength on the Cable/Wire |
| Overall Dimensions |
Length: 10.9'' (27.7 cm)
Height: 4.6'' (11.7 cm)
Width: 1.9'' (4.8 cm)
|
| Material | Steel |
| Cable Type |
Guy Strand, EHS, Coated
|
| Cable Diameter | 0.18'' to 0.6'' (4.57 to 15.2 mm) |
| Jaw Type |
Round
|
| Teeth Type |
Coarse
|
| Jaw Length |
4'' (10.2 cm)
|
| Maximum Safe Load |
5000 lb (2268 kg)
|
| Weight | 3.8 lb (1.7 kg) |
