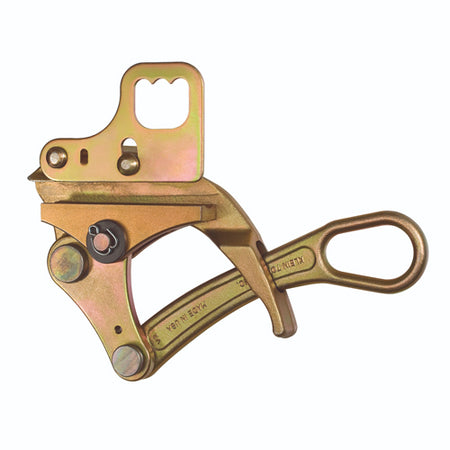

The Klein KT4502 Forged Parallel Jaw Grips with Hot-Latch's large round eyelet opening in the handle is perfect for accommodating a wide variety of hooks on hoists, winches and tackle blocks. The hot latch closes automatically to guard against grip accidently disengaging from the wire. The KT4502 has a jaw length of 3-Inches.
Warnings: Before each use, clean jaw area and inspect grip for proper operation to avoid slippage; When used on/near energized lines, ground, insulate, or isolate grip before pulling; Do not exceed rated capacity; Always match proper size and type of grip to application; Grips are to be used for temporary installation, not for permanent anchorage.
| Type | Parallel Jaw Grip |
| Application | Wire Pulling |
| Special Features | Hot Latch |
| Overall Dimensions |
Length: 11'' (27.9 cm)
Height: 1.5'' (3.8 cm)
Width: 4'' (10.2 cm)
|
| Material | Steel |
| Cable Type |
ACSR, AAC, Copper
|
| Cable Diameter | 0.18'' to 0.6'' (4.57 to 15.2 mm) |
| Jaw Type |
Round
|
| Teeth Type |
Coarse
|
| Jaw Length |
4'' (10.2 cm)
|
| Maximum Safe Load |
5000 lb (2268 kg)
|
| Weight | 3.8 lb (1.7 kg) |
