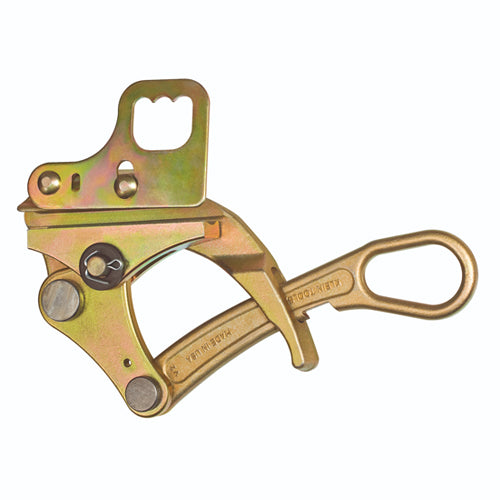

Klein Tools KT4801, Parallel Jaw Grip 4801 Series with Hot Latch/Spring
Regular price
$580.74
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Klein Tools has been manufacturing high quality grips for more than 135 years. Klein Parallel Jaw Grips are lightweight and compact. They can pull an exceptionally wide range of cable types and sizes.
- Securely pulls 0.700 - 1.25-Inch (17.78 - 31/75 mm) diameter ACSR cables
- Hot latch closes automatically to guard against grip accidently disengaging from wire
- Round jaw provides maximum contact with the cable minimizing deformation
- Large eyelet opening in the handle to accommodate a wide variety of hooks on hoists, winches and tackle blocks
- Made in USA
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
Warnings: Before each use, clean jaw area and inspect grip for proper operation to avoid slippage; When used on/near energized lines, ground, insulate, or isolate grip before pulling; Do not exceed rated capacity; Always match proper size and type of grip to application; Grips are to be used for temporary installation, not for permanent anchorage.
| Type | Parallel Jaw Grip |
| Application | Wire Pulling |
| Special Features | Hot Latch, Spring, Locking Handle |
| Overall Dimensions |
Length: 13.4'' (34 cm)
Height: 7.6'' (19.3 cm)
Width: 2.5'' (6.4 cm)
|
| Material | Steel |
| Cable Type |
ACSR, AAC, Copper
|
| Cable Diameter | 0.7'' to 1.25'' (17.78 to 31.75 mm) |
| Jaw Type |
Round
|
| Teeth Type |
Coarse
|
| Jaw Length |
5.125'' (13 cm)
|
| Maximum Safe Load |
12,000 lb (5443 kg)
|
| Weight | 9.0 lb (4.1 kg) |
