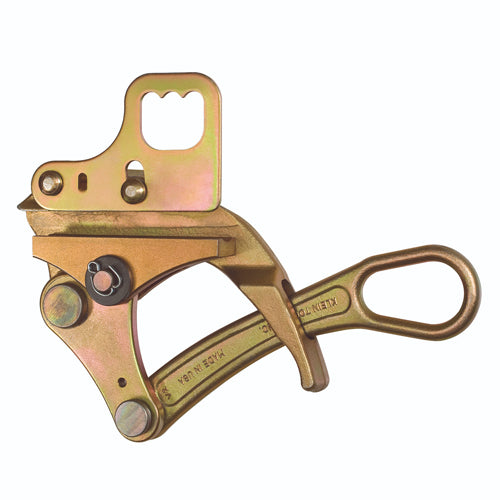

Klein Tools KT4802, Parallel Jaw Grip 4802 Series with Hot Latch
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Klein KT4802 Forged Parallel Jaw Grips with Hot-Latch's large round eyelet opening in the handle is perfect for accommodating a wide variety of hooks on hoists, winches and tackle blocks. The hot latch closes automatically to guard against grip accidently disengaging from the wire. The KT4802 has a jaw length of 5-1/8 - Inches.
- Securely pulls 0.700 - 1.25-Inch (17.78 - 31/75 mm) diameter ACSR cables
- Round jaw provides maximum contact with the cable minimizing deformation
- Hot latch closes automatically to guard against grip accidently disengaging from wire
- Large eyelet opening in the handle to accommodate a wide variety of hooks on hoists, winches and tackle blocks
- Made in USA
Warnings: Before each use, clean jaw area and inspect grip for proper operation to avoid slippage; When used on/near energized lines, ground, insulate, or isolate grip before pulling; Do not exceed rated capacity; Always match proper size and type of grip to application; Grips are to be used for temporary installation, not for permanent anchorage.
| Type | Parallel Jaw Grip |
| Application | Wire Pulling |
| Special Features | Hot Latch |
| Overall Dimensions |
Length: 13.4'' (34 cm)
Height: 7.6'' (19.3 cm)
Width: 2.5'' (6.4 cm)
|
| Material | Steel |
| Cable Type |
ACSR, AAC, Copper
|
| Cable Diameter | 0.7'' to 1.25'' (17.78 to 31.75 mm) |
| Jaw Type |
Round
|
| Teeth Type |
Coarse
|
| Jaw Length |
5.125'' (13 cm)
|
| Maximum Safe Load |
12,000 lb (5443 kg)
|
| Weight | 9.0 lb (4.1 kg) |
