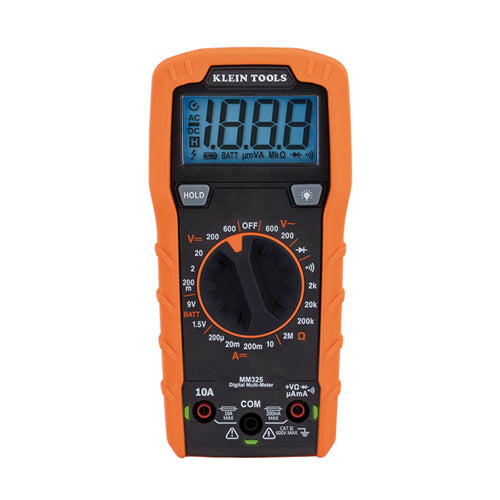

Klein Tools MM325, Digital Multimeter, Manual-Ranging, 600V
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Klein Tools MM325 Multimeter is a manual-ranging multimeter that measures AC/DC voltage, DC current, and resistance. It can also test batteries, diodes, and continuity. Klein Tools' Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.
- Multimeter measures up to 600V AC/DC voltage, 10A DC current, 2 MOhms resistance, continuity, batteries, and diodes
- Lead Alert protection with LED's for test lead placement
- Easy-to-view backlit display for low light environments
- Low battery indicator and easily accessible battery and fuse compartment
- Durable meter built to withstand a 6.6-Foot (2 m) drop
- Includes test leads, batteries and user manual
- CAT III 600V safety rating
- For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations
Warnings:Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use; Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged; Before each use verify meter operation by measuring a known voltage or current; Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
| Type |
Digital Multimeter
|
| Application |
Testing and Measuring Voltage
|
| Special Features |
Lead Alert; Backlight; Auto Power-Off; Data Hold
|
| Material |
ABS and Electrical Components
|
| Batteries | 2 x AAA |
| Drop Protection | 6.6' (2 m) |
| Display | 2000 Count LCD |
| Color | Orange/ Black |
| Functions | Measures up to 600V AC/DC Voltage, 10A DC Current, 2MΩ Resistance, Tests Batteries, Diodes, and Continuity |
| Voltage | 600V AC/DC |
| Current | 10A DC |
| Ohms (Resistance) |
2MΩ
|
| Standard |
CAT III 600V; CE and UKCA Certified
|
| Accuracy |
Voltage +/- 2%
|
| Included | Multimeter, Test Leads with CAT III/CAT IV Safety Caps, Instructions, 2 x AAA Batteries |
| Overall Dimensions |
Length: 6.41'' (16.2 cm)
Height: 1.83'' (4.6 cm)
Width: 3.13'' (7.9 cm)
|
| Weight | 8.8 oz (250 g) |
