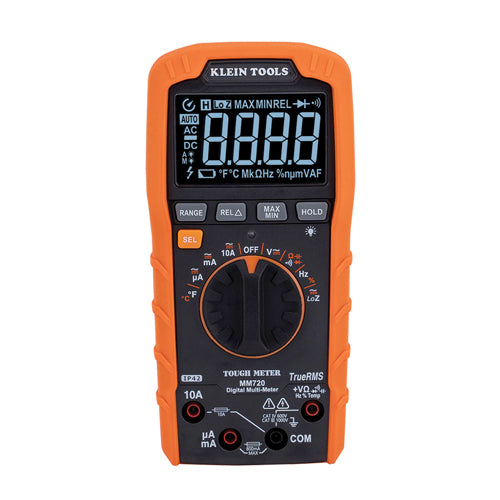

Klein Tools MM720, Digital Multimeter, TRMS Auto-Ranging, 1000V, Temp, Low Impedance

In stock
SKU: MM720
Regular price $129.98

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Klein Tools MM720 Multimeter is an automatically ranging true root mean squared (TRMS) digital multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, diodes and continuity. It features a high visibility, reverse contrast LCD display with an optical sensor to automatically optimize viewability in dark or bright ambient lighting.

  • Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy
  • Tester measures up to 1000V AC/DC voltage, 10A AC/DC current and 60 MOhms resistance plus temperature, capacitance, frequency, low impedance (LoZ), duty-cycle, test diodes and continuity
  • High visibility, reverse contrast display with optical sensor to automatically optimize viewability in dark or bright ambient lighting
  • Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
  • Low battery indicator and easily accessible battery and fuse compartment
  • Tough meter built to withstand a 6.6-Foot (2 m) drop and is rated IP42
  • Includes carrying pouch, test leads, thermocouple with adapter, and batteries
  • CAT IV 600V Safety Rating
  • For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations

Warnings:Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use; Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged; Before each use verify meter operation by measuring a known voltage or current; Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.

Type
Digital Multimeter
Application
Testing and Measuring Voltage
Special Features
High-Visibility Display with Optical Sensor; Auto-Range; Min/Max/Relative; Low Impedance (LoZ) Mode; Auto Power-Off; Data Hold
Material
ABS, Electrical Components
Batteries 2 x AAA
Drop Protection 6.6' (2 m)
Display 6000 Count LCD
Color Orange/ Black
Functions Measures up to 1000 VAC/DC Voltage, 10A AC/DC Current, 60MΩ Resistance, Temperature, Capacitance, Frequency, Duty-Cycle, Diodes, and Continuity
Voltage 1000V AC/DC
Frequency 1 Hz - 50 KHz
Current 10A AC/DC
Capacitance 6000 µF
Ohms (Resistance)
60MΩ
Ingress Protection
IP42
Standard
CAT IV 600V; CAT III 1000V
Temperature Range
-40° to 1832°F (-40° to 1000°C)
Included Multimeter, Carrying Case, Test Leads with CAT III/CAT IV Safety Caps, Thermocouple, Instructions, 2 x AAA Batteries
Overall Dimensions
Length: 6.94'' (17.6 cm)
Height: 1.88'' (4.7 cm)
Width: 3.37'' (8.5 cm)
Weight 12.2 oz (345 g)
