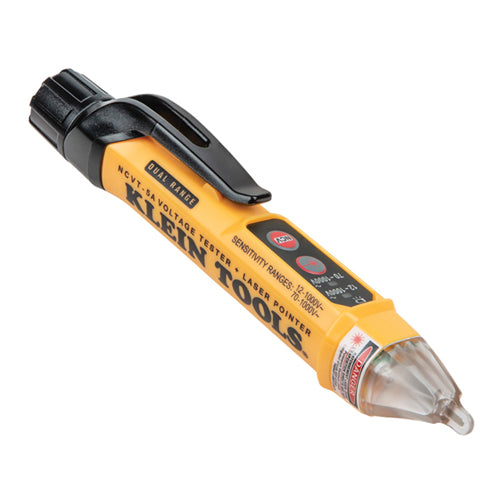

Klein Tools NCVT-5A, Dual Range Non-Contact Voltage Tester Pen with Laser Pointer, 12 to 1000V AC

In stock
SKU: NCVT-5A
Regular price $39.97

Use this text to encourage communication or promote sharing on social networks.

You can also add links

The Klein Tools NCVT-5A is a dual-range non-contact voltage tester (NCVT) with integrated laser pointer. The tester can be set to detect voltage from 70 to 1000V AC (Mode 1) or from 12 to 1000V AC (Mode 2). High pitched audible alerts beep at greater frequency as higher voltage is sensed, or proximity to the voltage source gets closer. The laser pointer can function independent of or simultaneously with the NCVT. CAT IV 1000V safety rating.

Warnings:Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling; LASER RADIATION, Class IIIa laser. DO NOT direct laser beam into eyes, DO NOT stare into the beam, or DO NOT view directly with optical instruments as this can cause severe and permanent eye damage; Use of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death

Type
Non-Contact Voltage Tester
Application
Dual-Range Non-contact Detection of the Presence of AC Voltage from 12-1000 VAC or from 70-1000V AC
Special Features
Integrated High Strength Red Laser Pointer, Dual Range Tester (70-1000V; 12V-1000V) AC Voltage Detection, Simultaneous Visual and Audible Voltage Indicators in the Presence of AC Voltage; US Patent No. D750985
Material Plastic and Electronic Assemblies
Drop Protection 9.8' (3 m)
Voltage 12 – 1000V AC; 70 – 1000V AC
Frequency 50 to 500 Hz
Pollution Degree
2
Standard
CAT IV 1000V; Laser: Class IIIa, 630-670nm, Max Power <5mW
Batteries
2 x AAA
Included NCVT; Batteries
Battery Life Laser On: 31 hr; NCV On with Visual and Audible Alerts: 25 hr
Overall Dimensions
Length: 6'' (15.2 cm)
Height: 1.16'' (2.9 cm)
Width: 0.96'' (2.4 cm)
Weight 1.5 oz (43 g)
