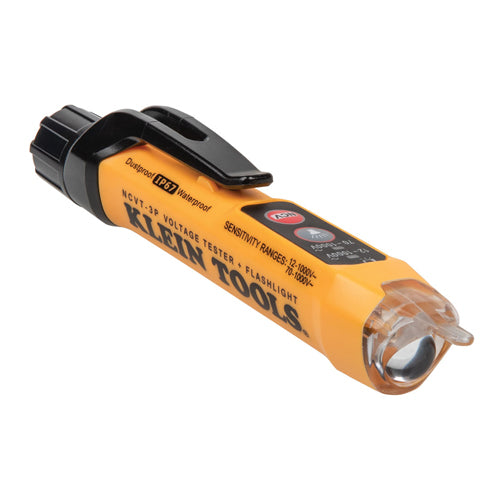

Klein Tools NCVT3P, Dual Range Non-Contact Voltage Tester with Flashlight, 12 to 1000V AC
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The NCVT-3P is a non-contact voltage tester with an integrated flashlight. The voltage sensor detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The NCVT-3P is rugged enough for any job site.
- Dual modes indicates low voltage (12 to 70V AC) and standard voltage (70 to 1000V AC) allowing broad application
- Detects voltage with simultaneous visual and audible voltage indicators
- Bright flashlight illuminates work area and may be used independent of voltage detection function
- Green light indicates no voltage
- Lightweight, compact tool with pocket clip provides convenient storage and quick access
- Auto power-off feature conserves and extends battery life
- CAT IV 1000V rating provides expanded operation and protection
- Screw-thread battery cap with O-ring ensures protection against dust and water ingress
- 6.6-Foot (2 m) drop protection
- IP67: Dustproof and waterproof
- Conforms to CE requirements
- US Patent 10,073,142, D750,985 and other patents pending
Warnings:Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
| Type |
Dual Range with Flashlight
|
| Application |
Non-Contact Detection and Testing of AC Voltage
|
| Special Features |
Flashlight, LED and Audible Beep Indications, Auto-Power Off, Pocket Clip
|
| Material | Polycarbonate |
| Drop Protection | 6.6' (2 m) |
| Voltage | 12 – 1000V AC; 70 – 1000V AC |
| Frequency | 50 - 500 Hz |
| Pollution Degree |
2
|
| Ingress Protection |
IP67: Dustproof and Waterproof
|
| Standard |
CAT IV 1000V
|
| Batteries |
2 x AAA
|
| Battery Life |
125 hr
|
| Included | NCVT; Batteries |
| Overall Dimensions |
Length: 5.70'' (14.5 cm)
Height: 0.93'' (2.4 cm)
Width: 1.09'' (2.8 cm)
|
| Weight | 1.9 oz (51.0 g) |
