Klein Tools NCVT3PKIT, Dual Range NCVT and AC/DC Voltage Tester Electrical Test Kit
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

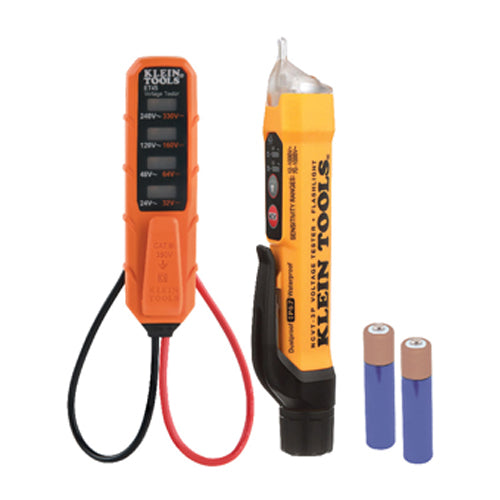

The NCVT3PKIT from Klein Tools includes a dual-range, non-contact voltage tester with integrated Flashlight, and an AC/DC Voltage Tester. The NCVT-3P with flashlight is a non-contact voltage tester that detects 12 to 1000V AC and 70 to 1000V AC, and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. The ET45 AC/DC Voltage Tester is designed as a simple, easy to use tester to check, verify or troubleshoot common residential electrical applications. This tester does not require batteries, and features a pocket clip for convenient carrying.
Warnings:Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling; Never use the tester on a circuit with voltages that exceed the category based rating of this tester.
| Type |
Dual Range with Flashlight for NCVT-3P
|
| Application |
NCVT-3P: Non-Contact Detection and Testing of AC Voltage;
ET45: Measures AC/DC Voltage
|
| Special Features |
Two Distinctive Modes on NCVT-3P: 70 to 1000V AC and 12 to 1000V AC; Flashlight
|
| Material | Polycarbonate and Electrical Components |
| Drop Protection | NCVT3P: 6.6' (2 m); ET45: 9.9' (3 m) |
| Voltage | NCVT3P: 12 - 1000V AC; ET45: AC Level Indicators: 24V, 48V, 120V, 240V; DC Level Indicators: 32V, 64V, 160V, 330V |
| Frequency | NCVT3P: 50 - 500 Hz; ET45: 50/60 Hz |
| Pollution Degree |
2
|
| Ingress Protection |
NCVT3P: IP67 Dustproof and Waterproof; ET45: IP44
|
| Standard |
NCVT3P: CAT IV 1000V; ET45: CATIII 350V
|
| Batteries |
2 x AAA
|
| Battery Life |
125 hr
|
| Included | NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight; ET45 AC/DC Voltage Tester; Instructions; and All Required Batteries |
| Overall Dimensions |
Length: 5.70'' (14.5 cm)
Height: 1.09'' (2.8 cm)
Width: 0.93'' (2.4 cm)
|
| Weight | 1.9 oz (51.0 g) |
