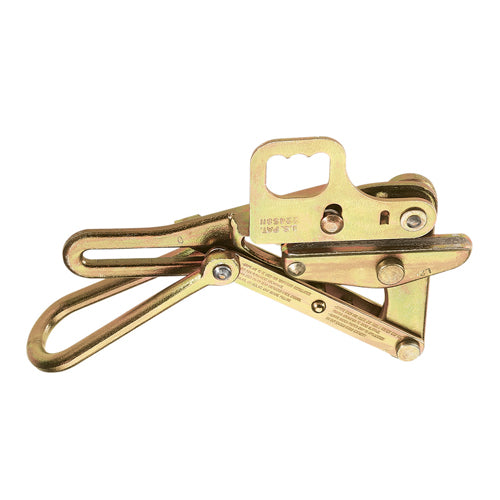

Klein Tools S1684-5H, Chicago Grip-with Hot-Line Latch, Forged, 0.218'' to 0.55'' Cable Diameter

In stock
SKU: S1684-5H
$1,073.64
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.

Use this text to encourage communication or promote sharing on social networks.

You can also add links

The Klein S1684-5H Chicago Grip-with Hot-Line Latch for Bare Conductors are for both bare and insulated conductors . The Klein S1684-5H Chicago Grip-with Hot-Line Latch for Bare Conductors grip may be placed on wire with hot-line stick. When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire.

  • Works with Aircraft, EHS, Messenger, Guy Strand cable
  • Double V inside-jaw contour
  • Standard hot-line grips are not supplied with springs or lock-open features
  • Made in USA
  • Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product

Warnings：Before each use, clean jaw area and inspect grip for proper operation to avoid slippage; When used on/near energized lines, ground, insulate, or isolate grip before pulling; Do not exceed rated capacity; Always match proper size and type of grip to application; Grips are to be used for temporary installation, not for permanent anchorage.

Type Chicago Grip
Application Wire Pulling
Material Steel
Overall Dimensions
Length: 14.75'' (37.5 cm)
Height: 8.63'' (21.9 cm)
Width: 2.38'' (6 cm)
Cable Type Aircraft, EHS, Messenger, Guy Strand
Cable Diameter 0.218'' to 0.55'' (5.54 to 13.97 mm)
Jaw Type Double V
Teeth Type Smooth
Jaw Length 5'' (12.7 cm)
Maximum Safe Load 8000 lb (3629 kg)
Weight 6.7 lb (3.0 kg)
