Home » Klein Tools TI250, Rechargeable Thermal Imaging Camera, Over 19,200 Pixels, 32GB Memory
Klein Tools

Klein Tools TI250, Rechargeable Thermal Imaging Camera, Over 19,200 Pixels, 32GB Memory

In stock
SKU: TI250
$469.98

Use this text to encourage communication or promote sharing on social networks.

You can also add links

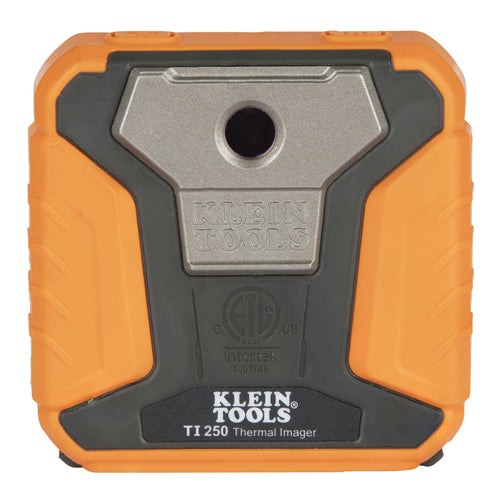

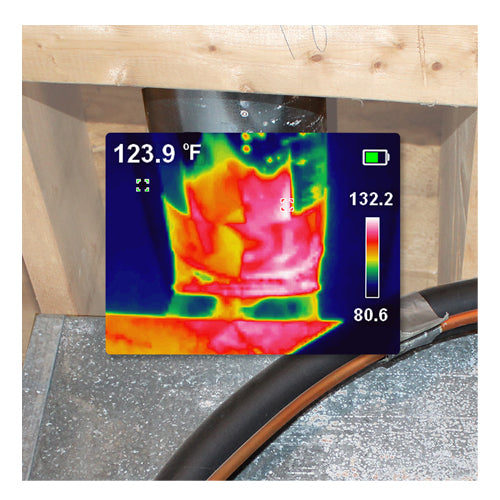

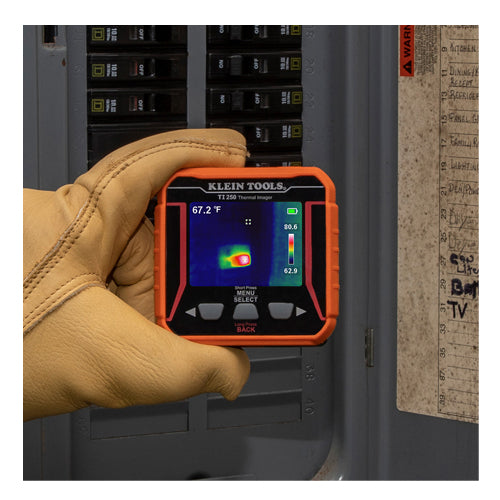

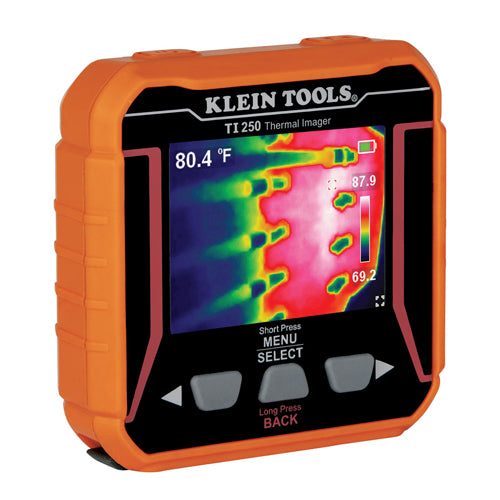

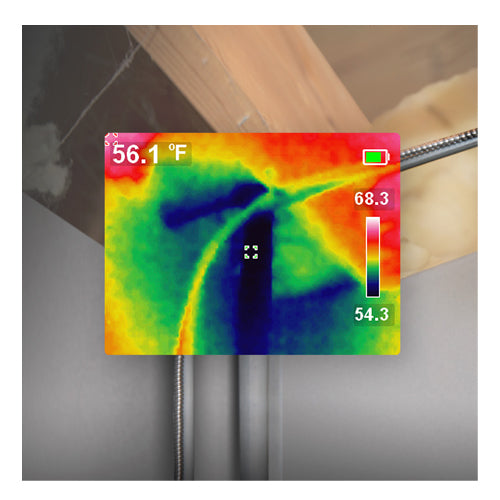

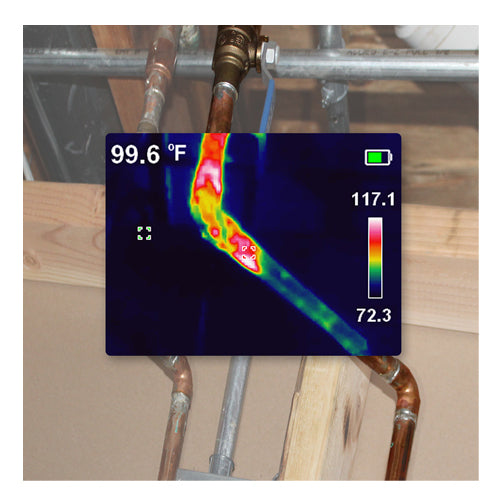

The Klein Tools TI250 is an easy-to-use, USB rechargeable Thermal Imager. The large LCD displays unseen hot and cold spots for instant troubleshooting. Excellent resolution with over 19,200 pixels and your choice of three color palettes. The meter provides high and low temperature points, crosshairs to pinpoint specific temperatures, and options for temperature alarms. Easily capture and transfer images with USB-C port for reporting.

  • Thermal Imager has over 19,200 pixels to troubleshoot hot and cold spots
  • Adjustable emissivity from 0.01 to 0.99
  • Store and share images via USB-C
  • User selectable high and low temperature alarms from -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius)
  • Select color palettes to best capture the event
  • Rechargeable lithium-ion battery
  • Includes thermal imager, charging cable, carrying case, and instructions

Warnings：Never use on or near live electrical circuits. NOT insulated. Will NOT protect against electrical shock.

Type Thermal Imager
Special Features High and Low Temperature Points, Crosshairs to Pinpoint Specific Temperatures, Options for Temperature Alarms, 3 Color Pallets
Application View Hot and Cold Spots For Instant Troubleshooting
Display 2.4'' (6.1 cm) TFT LCD
Display Resolution 320 x 240 Pixels
Sensor Type VOx Microbolometer
Sensor Resolution 19,200 Pixels
Thermal Sensitivity <60 mK
Spectral Range 8 to 14μm
Temperature Range -4° to 752°F (-20° to 400°C)
Accuracy At More Than 212°F (100°C): +/- 2° or 2% (Whichever is Greater); At Less Than 212°F (100°C): +/- 3° or 3% (Whichever is Greater)
Field of View 50° +/- 3°
Laser Sighting No
Emissivity 0.01 to 0.99, Adjustable
Color Palettes Ironbow, Rainbow, and Grayscale
Photo Capture Yes
Maximum Frames per Second <9 Hz
Batteries Lithium-Ion
Included Rechargeable Thermal Imager, Charging Cable, Carrying Case, and Instructions
Material ABS/PC, Electronic Components
Standards
CE and UKCA
Overall Dimensions
Length: 3.1'' (8.0 cm)
Height: 3.1'' (8.0 cm)
Width: 1'' (2.5 cm)
Weight 8.5 oz (241 g)
