Klein Tools TI290, Rechargeable Pro Thermal Imaging Camera, 76,800 Pixels, Wi-Fi Data Transfer, 10,000 Images Memory
Regular price
$844.98
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

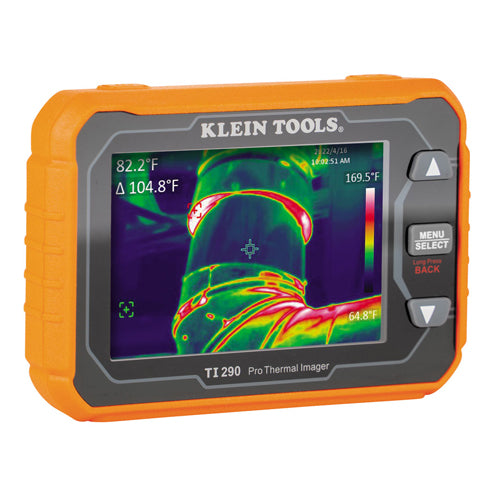

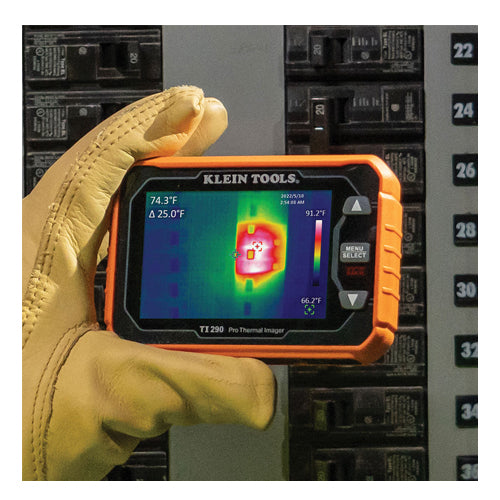

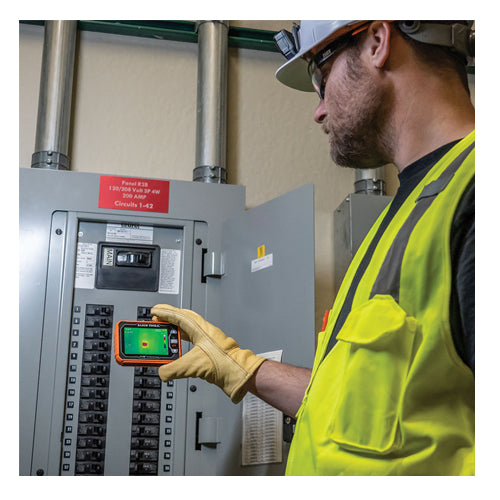

The Klein Tools TI290 is a high resolution, Wi-Fi enabled, professional model USB rechargeable Thermal Imager. The large LCD displays unseen hot and cold spots for instant troubleshooting. Excellent resolution with over 76,800 pixels and your choice of three color palettes. The meter provides high and low temperature points, crosshairs to pinpoint specific temperatures, and options for temperature alarms. App is available for free in Google Play™ store and in the App Store.

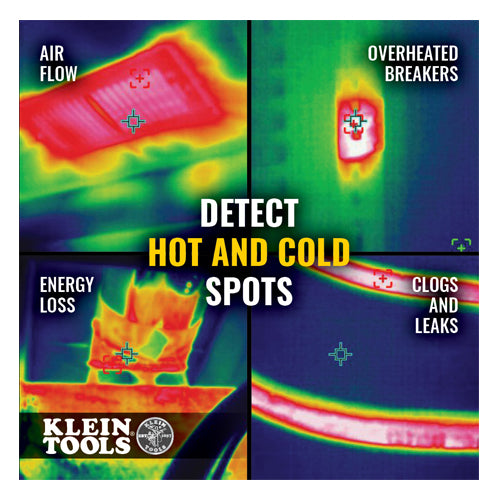

- Thermal Imager has over 76,800 pixels to troubleshoot hot and cold spots
- Easily capture, store and share thermal images with Wi-Fi capabilities
- User selectable high and low temperature alarms from -40 to 752-Degree Fahrenheit (-4 to 400-Degree Celsius)
- Adjustable emissivity from 0.01 to 0.99
- Select color palettes to best capture the event; ironbow, rainbow, or grayscale
- Rechargeable lithium-ion battery
- App is available for free in Google Play™ store and in the App Store

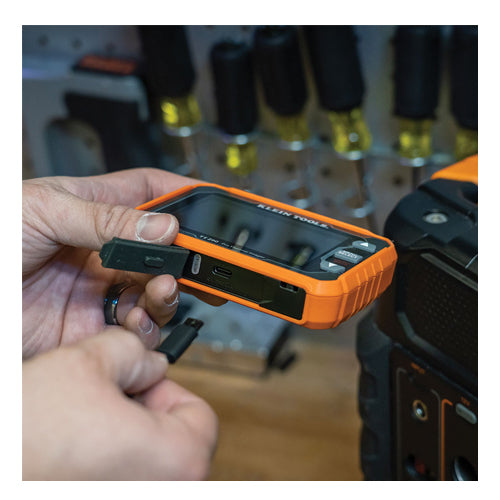

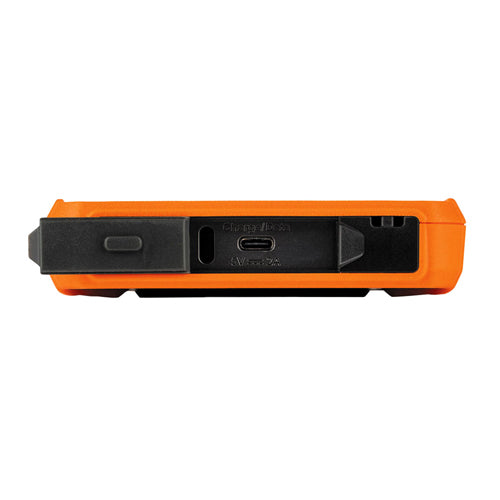

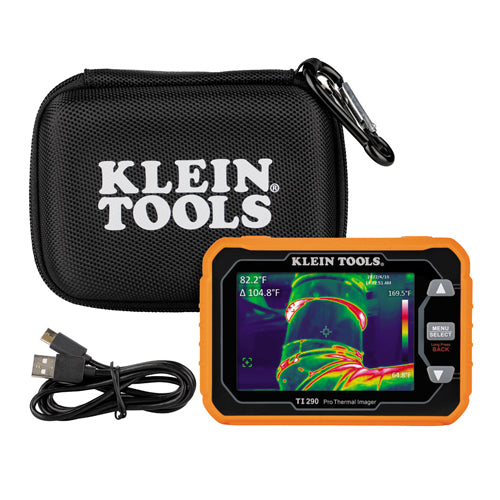

- Includes thermal imager, USB-C charging cable, molded soft-storage case with carabiner, and instructions
- Durable 6.6-Foot (2 m) drop test protection
Warnings：Never use on or near live electrical circuits. NOT insulated. Will NOT protect against electrical shock.
| Type | Thermal Imager |
| Special Features | Wi-Fi Transfer, High and Low Temperature Points, Crosshairs to Pinpoint Specific Temperatures, Options for Temperature Alarms, 3 Color Palettes |
| Application | View Hot and Cold Spots for Instant Troubleshooting |
| Display | 3.5'' (8.9 cm) TFT LCD |
| Display Resolution | 480 x 320 Pixels |
| Sensor Type | VOx Microbolometer |
| Sensor Resolution | 76,800 Pixels |
| Thermal Sensitivity | <50 mK |
| Spectral Range | 8 to 14μm |
| Temperature Range | -40° to 752°F (-4° to 400°C) |
| Accuracy | ±2°C (±3.6°F) or 2%, Whichever is Greater |
| Field of View | 56° +/- 2.8° |
| Laser Sighting | No |
| Emissivity | 0.01 to 0.99, Adjustable |
| Color Palettes | Ironbow, Rainbow, and Grayscale |
| Photo Capture | Yes and Wi-Fi Data Transfer |
| Maximum Frames per Second | <9 Hz |
| Batteries | Lithium-Ion |
| Included | Rechargeable Thermal Imager, USB Charging Cable,Molded Soft-Storage Case with Carabiner, and Instructions |
| Material | ABS/PC, Electronic Components |
| Standards |
CE and UKCA
|
| Overall Dimensions |
Length: 4.5'' (11.3 cm)
Height: 1.1'' (2.8 cm)
Width: 3.1'' (8 cm)
|
| Weight | 8.3 oz (235 g) |
| Battery Life | 5-year |
