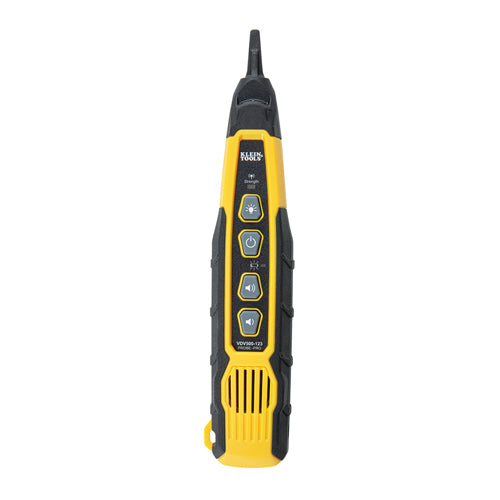

Klein Tools VDV500-123, Probe-PRO Tracing Probe
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

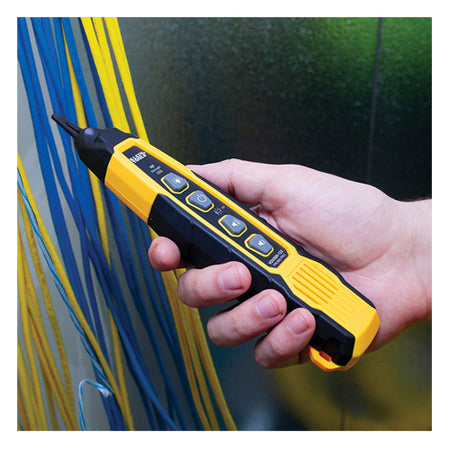

The professional series Probe-Pro Tone Tracer traces non-active wiring when used with Toner-Pro Tone Generator (VDV500-063, sold separately). It features a responsive, durable, replaceable non-metallic, conductive tip and a work light for use in dark spaces. A headphone jack allows for headphone (not included) use in extreme noise environments. The terminal block confirms the toned pair has been located.
- Traces open-ended, non-energized wiring when used with Toner-Pro Tone Generator (VDV500-063, sold separately)

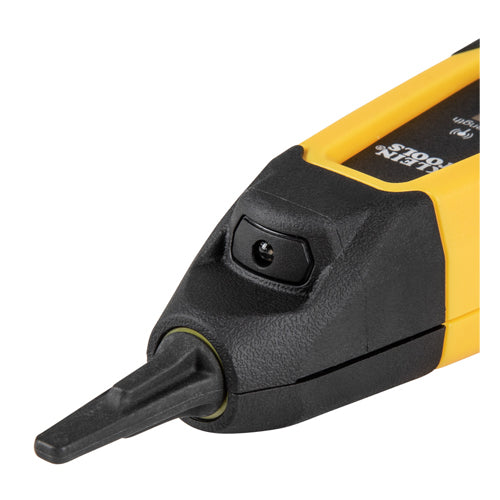

- Responsive, durable, replaceable non-metallic, conductive tip
- Work light for use in dark spaces
- 3.5 mm headphone jack for noisy environments (headphones not included)
- Terminal block on probe to confirm the toned pair has been located
- Tool-less, twist-and-lock replacement tip (Cat. No. VDV999-068) available
- One push power button with power-on LED indicator with no need to hold button down
- Auto power-off
- Low battery indicator
- 4 x AAA batteries included
- Includes a loop for a lanyard
- Works with Klein's Scout® Pro, Lan Scout®, Jr. and Commander™ series of testers
Warnings：Do NOT use on energized circuits; Do not use instruments if they are wet, as it could pose a shock hazard; Turn off instruments and disconnect all test leads before attempting to replace batteries; Do not open the case, other than the battery compartment; The battery door must be in place and secure before you operate.
| Type | Accessory Probe |
| Application | Wire Tracing |
| Special Features | Worklight, Stay on Power Button |
| Material | Plastic and Metal |
| Battery Life | 25 hr |
| Low Battery Indicato | Yes |
| Power On LED Indicator | Yes |
| Auto-Power Off | Yes |
| Adjustable Volume | Yes |
| Amplifier Overload Indicatio |
No
|
| Replaceable Tip | Yes |
| Visual Notification | LED |
| Included | Tracing Probe; 4 x AAA Batteries |
| Overall Dimensions |
Length: 1.4'' (3.6 cm)
Height: 9'' (22.7 cm)
Width: 1.2'' (3.0 cm)
|
| Weight |
5.7 oz (0.2 kg)
|
