Klein Tools VDV500-223, Digital Tracing Probe
Regular price
$112.98
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Use the Klein Tools Digital Tracing Probe to trace cables and wires on active and non-active networks when used with the Digital Tone Generator (Cat. No. VDV500-163; sold separately). It features a responsive, durable, replaceable non-metallic, conductive tip and a work light for use in dark spaces. A headphone jack allows for headphone (not included) use in extreme noise environments.
- Digital Probe traces non-energized wiring when used with the Digital Tone Generator (Cat. No. VDV500-163 required; sold separately)

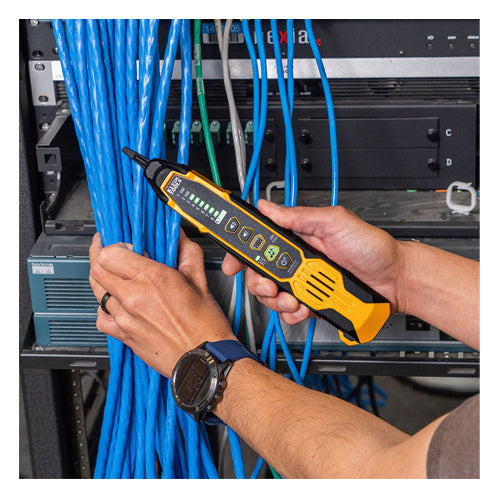

- Trace and locate cables on an active network when used with the Digital Tone Generator (Cat. No. VDV500-163 required; sold separately)
- Work light for use in dark spaces
- 3.5 mm headphone jack for use in noisy environments (headphones not included)

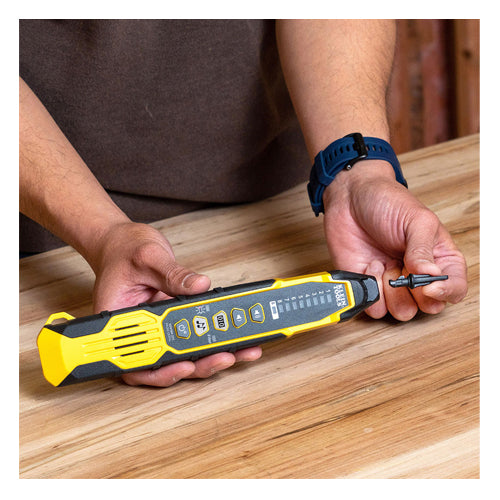

- Tool-less, twist-and-lock replacement tip (Cat. No. VDV999-070) available
- 60Hz filter for accurate tracing, works with Klein's Scout® Pro and Lan Scout® Jr. testers
- Wire mapping capabilities to check Pin-to-Pin connections with shield detection when used with the Digital Tone Generator (Cat. No. VDV500-163 required; sold separately)
| Type | Digital Wire Tracing |
| Application | Wire Tracing |
| Special Features | Work Light, Stay On Power Button |
| Material | ABS |
| Battery Life | 20 hr |
| Auto-Power Off | Yes |
| Visual Notification | LED |
| Included | Tracing Probe; 4 x AAA Batteries |
| Overall Dimensions |
Length: 1.9'' (4.8 cm)
Height: 9.9'' (25.1 cm)
Width: 1.3'' (3.3 cm)
|
| Weight |
5.2 oz (147 g)
|
