Klein Tools VDV501-851, Ethernet Cable Tester Kit with Scout® Pro 3 Tester, Remotes and Adapter

In stock
SKU: VDV501-851
$134.98

Use this text to encourage communication or promote sharing on social networks.

You can also add links

The Scout® Pro 3 Tester Starter Kit is a versatile cable tester that locates and tests voice, data and video cables. Identify multiple cable runs with included location mapping remotes. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.

    • Cable tester tests voice (RJ11/12), data (RJ45) and video (coax F-connector) terminated cables with clearly defined results
    • Measure cable length up to 2000 feet (610 m)
    • Test for Open, Short, Miswire or Split-Pair faults
    • Backlit LCD screen displays cable length, wiremap, cable ID and test results
    • Trace cables, wire pairs and individual conductor wires with multiple style tone generator (requires analog probe Cat. No. VDV500-123; sold separately)
    • Hub blink mode to identify port location on a hub or a switch
    • LanMap™ and CoaxMap™ Location Remotes (5 each) map and ID multiple cable runs in a single step
    • Includes voltage warning, shield detection, low battery indicator, a self-storing remote, and auto power off feature to conserve battery life (9V included)
    • Auto Power-off feature to conserve battery life (9V included)

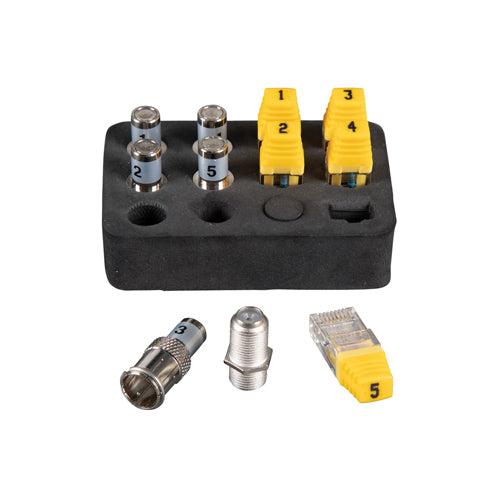

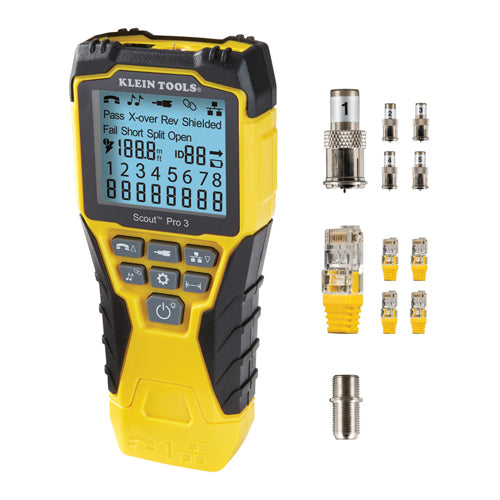

    • Kit includes: Scout® Pro 3 Tester, (1) self-storing remote, (5) LanMap™ RJ45 locator remotes, (5) CoaxMap™ F-connector locator remotes, (1) coax F-connector, manual and 9V battery

    Warnings：Always wear approved eye protection; Do NOT use on energized circuits.

    Type Twisted Pair, DATA, Voice, LAN, and Coaxial
    Application Cable Testing
    Special Features Measures Cable Length; Backlit LCD; Hub Blink
    Cable Type DATA:, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q
    Overall Dimensions
    Length: 7'' (17.8 cm)
    Height: 3'' (7.6 cm)
    Width: 1.25'' (3.2 cm)
    Material Plastic and Metal

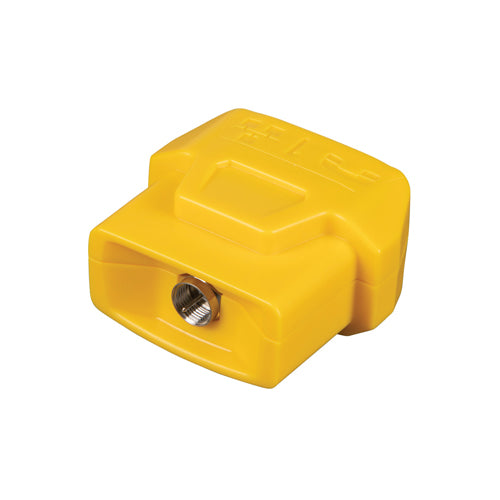

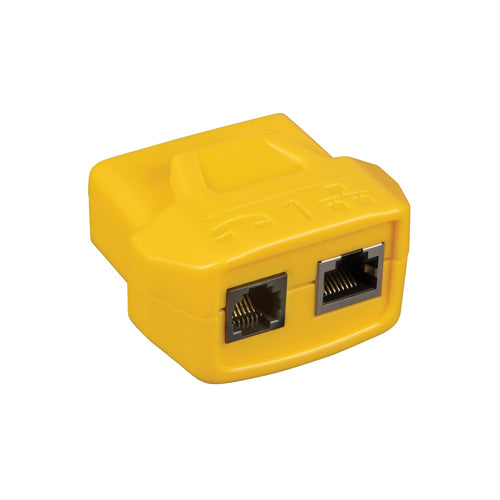

    Test-n-Map ID Remotes (1) Self-Storing
    Location ID (5) RJ45 Data and (5) F-Coax connector Locator Remotes

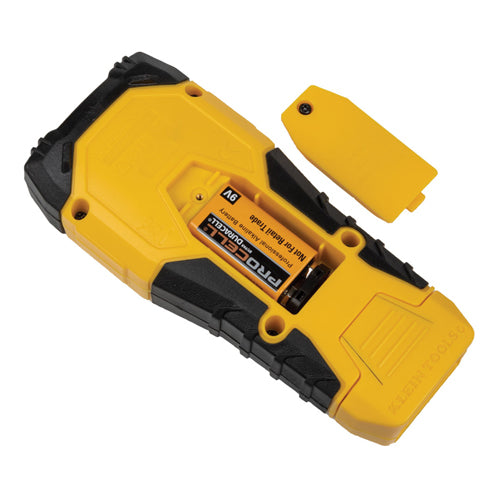

    Batteries 9V Alkaline
    Battery Life Active: 50 hr
    Drop Protection 2 m
    Supported Remotes 18
    Connection & Adapter Types RJ11, RJ12, RJ45, Coax F
    Display Backlit LCD
    Multiple Style Tone Generator Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
    Faults Detected Open, Short, Miswire
    Test & Measure Types Ethernet/Data and Coaxial
    Accuracy Length Measurement: +/- 5% (ft) or 5% m
    Included Tester, Self-Storing Remote, (5) LanMap RJ45 Locator Remotes, (5) CoaxMap F-connector Locator Remotes, (1) Coax F-adapter, Manual, (1) 9V Battery
    Standard CE
    Weight 1.2 lb (0.5 kg)
