Home » Klein Tools VDV501-852, Scout ® Pro 3 Tester with Locator Remote Kit
Klein Tools

Klein Tools VDV501-852, Scout ® Pro 3 Tester with Locator Remote Kit

In stock
SKU: VDV501-852
$239.98

Use this text to encourage communication or promote sharing on social networks.

You can also add links

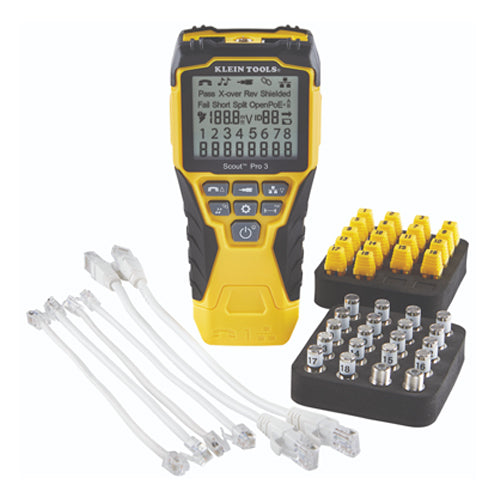

The Scout® Pro 3 Tester with Locator Remote Kit is a versatile cable tester that locates and tests voice, data and video cables. Identify multiple cable runs with 18 location mapping remotes (included). Test for Power over Ethernet (PoE) and measure cable length. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.

    • Cable tester for voice (RJ11/12), data (RJ45) and video (F-connector) coax connections
    • Self-storing Test + Map™ Remote (#1) tests, maps and IDs a cable run in a single step
    • Power over Ethernet Tester that displays PoE wire and Voltage
    • Trace cables, wire pairs and individual conductor wires with a tone generator (requires analog probe Cat. No. VDV500-123; sold separately)
    • Measures cable length up to 2,000 feet (610 m)
    • Identify multiple cable runs with location-mapping remotes Identify
    • Kit includes 18 RJ45 LAN locator remotes, 18 F-coax locator remotes, 2 female-to-female coax barrel adaptors, 2 RJ45, RJ11 and RJ12 jumper cables (6-Inch), carrying case and 9V battery
    • Detect, identify and test Power over Ethernet (PoE)
    • Backlit LCD screen displays cable length, wiremap, cable ID and test results
    • Hub blink mode to identify port location on a hub or a switch
    • Identify 18 RJ45 and 18 F-connector drop locations with large easy-to-read numbers

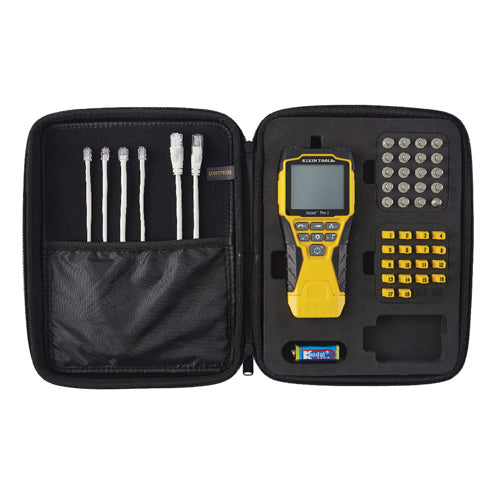

    • Includes a 9V battery and convenient carrying case

    Warnings：Always wear approved eye protection; Do NOT use on energized circuits.

    Type
    Twisted Pair, DATA, Voice, LAN, and Coaxial
    Application Cable Testing
    Special Features Measures Cable Length; Power over Ethernet; Backlit LCD; Hub Blink
    Cable Type DATA:, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q
    Overall Dimensions
    Length: 7'' (17.8 cm)
    Height: 3.2'' (8 cm)
    Width: 1.5'' (3.8 cm)
    Material Plastic and Metal
    Test-n-Map ID Remotes (1) Self-Storing
    Location ID (18) RJ45 Data and (18) F-Coax Locator Remotes

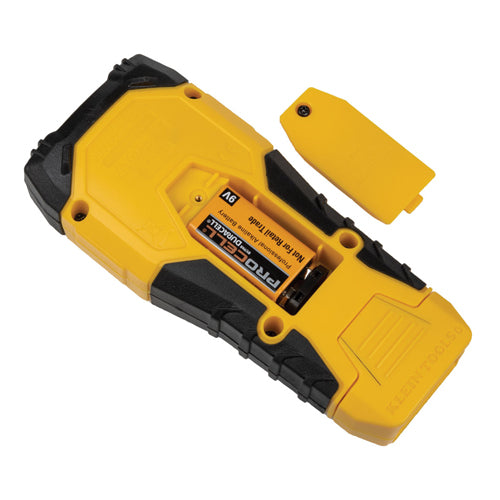

    Batteries 9V Alkaline
    Battery Life Active: 50 hr
    Drop Protection 2 m
    Supported Remotes 18
    Connection & Adapter Types RJ11, RJ12, RJ45, Coax F
    Display Backlit LCD
    Multiple Style Tone Generator Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
    Faults Detected Open, Short, Miswire
    Test & Measure Types Ethernet, Data, Coaxial
    Accuracy Length Measurement: +/- 5% (ft) or 5% m

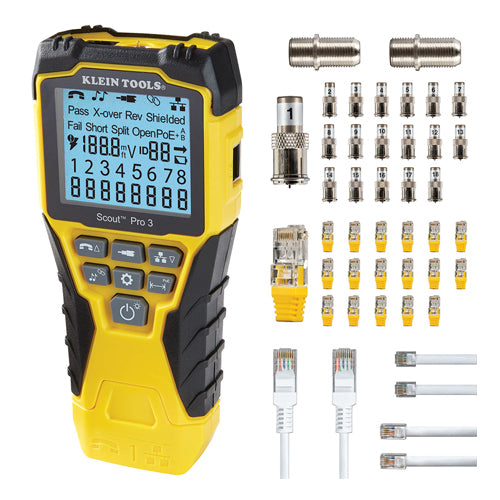

    Included Tester, Self-storing Test + Map™ Remote (#1), 18 - RJ45 LAN Locator Remotes, 18 - F Coax Locator Remotes, 2 - Coaxial Barrel Adapters (female-to-female), 2 - RJ45 Jumper Cables (6''), 2 - RJ11 Jumper Cables, 2 - RJ12 Jumper Cables, Carrying Case, 1 x 9V Battery
    Standard CE
    Weight 1.2 lb (0.5 kg)
