Klein Tools VDV501-853, Scout ® Pro 3 Tester with Test + Map™ Remote Kit
Regular price
$349.98
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Scout® Pro 3 Tester with Test + Map™ Remote Kit is a versatile cable tester that locates and tests voice, data and video cables. Use the self-storing remote and Test + Map™ remotes #2 - #6 for fast, accurate identification. Identify POE, POE+, A wiring, B wiring and voltage. This tester also measures cable length. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.
- Tests voice (RJ11/12), data (RJ45) and video (F-connector) coax connections
- Detect, identify and test Power over Ethernet (PoE)
- Wiremap testing, testing for Miswires, Split Pairs, Short Faults, Open Faults, and Shield
- Measures cable length up to 2000 feet
- Trace cables, wire pairs and individual conductor wires with a multi-style tone generator (requires analog probe Cat. No. VDV500-123; sold separately)

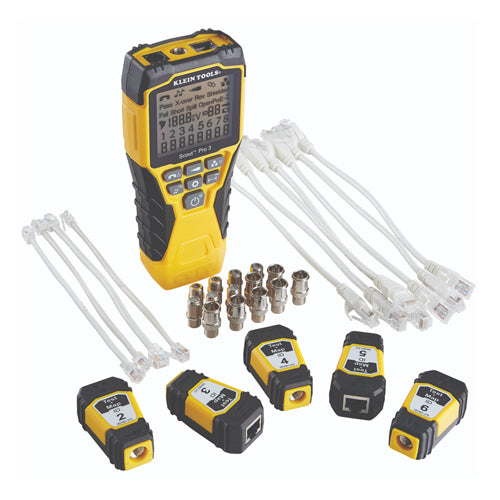

- Includes 1 self-storing Test+Map remote (#1), 5 Test+Map remotes (#2-6), 7 female-to-female, 7 male-to-female coax barrel adapters, 7 RJ45 jumper cables (6-Inch), 2 RJ11, 2 RJ12 jumper cables (6-Inch)
- Includes a 9V battery and convenient carrying case
- Hub blink mode to identify port location on a hub or a switch
- 1 dockable smart remote, 5 loose smart remotes plus 7 female-to-female and 7 male-to-female coax adapters
- Backlit LCD screen displays cable length, wiremap, cable ID and test results
Warnings：Always wear approved eye protection; Do NOT use on energized circuits.
| Type |
Twisted Pair, DATA, Voice, LAN, and Coaxial
|
| Application | Cable Testing |
| Special Features | Measures Cable Length; Power over Ethernet; Backlit LCD; Hub Blink |
| Cable Type | DATA:, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q |
| Overall Dimensions |
Length: 7'' (17.8 cm)
Height: 3.2'' (8 cm)
Width: 1.5'' (3.8 cm)
|
| Material | Plastic and Metal |
| Test-n-Map ID Remotes | (1) Self-Storing, (5) Test + Map™ Remotes (#2 - #6) |
| Batteries | 9V Alkaline |
| Battery Life | Active: 50 hr |
| Drop Protection | 2 m |
| Supported Remotes | 18 |

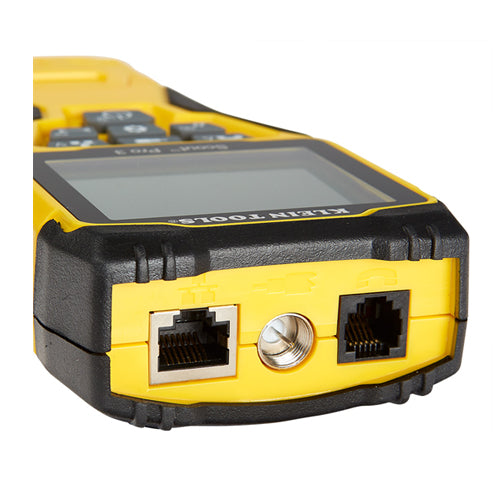

| Connection & Adapter Types | RJ11, RJ12, RJ45, Coax F |
| Display | Backlit LCD |
| Multiple Style Tone Generator | Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately |
| Faults Detected | Open, Short, Miswire |
| Test & Measure Types | Ethernet, Data, Coaxial |
| Accuracy | Length Measurement: +/- 5% (ft) or 5% m |

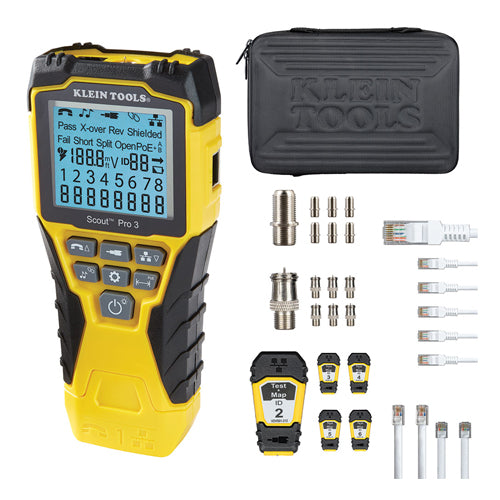

| Included | Tester, Self-storing Test + Map™ Remote (#1), 5 - Test + Map™ Remotes (#2 - #6), 7 - Coaxial Barrel Adapters (female-to-female), 7 - Coaxial Barrel Adapters (male-to-female), 7 - RJ45 Jumper, 2 - RJ11 Jumper, 2 - RJ12 Jumper, Carrying case, 9V alkaline battery |
| Standard | CE |
| Weight | 1.2 lb (0.5 kg) |
