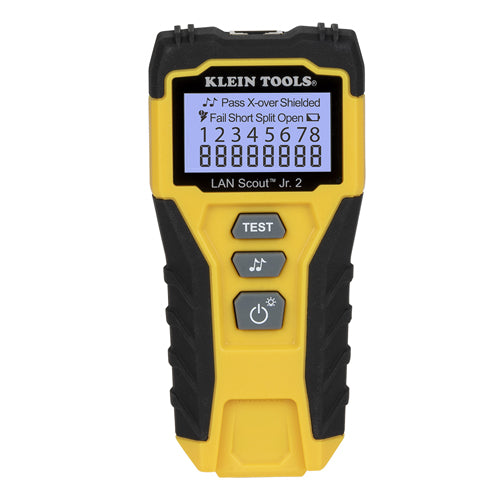

Klein Tools VDV526-200, Ethernet Cable Tester Kit, LAN Scout® Jr. Cable Tester, RJ45 Remote
Regular price
$76.98
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The LAN Scout® Jr. 2 Cable Tester tests installed or loose data (CAT 5e, CAT 6/6A) cables terminated with RJ45 connectors. It also, tones cables with multiple tone frequencies. The larger display is backlit for easier reading in low lit areas. This model uses 2 x AAA batteries (included). Three buttons provide an intuitive user interface.
- Cable tester for data (RJ45) terminated cables and patch cords
- Large backlit LCD for low lit areas displays pin to pin wiremap results
- Test for Open, Short, Miswire or Split-Pair faults, Cross-over and Shield
- Intuitive user interface features three buttons with simple, easy-to-identify test responses
- Tone on single wire, wire pair or all 8 conductor wires
- Multiple style tone generator (solid / warble); requires probe Cat. No. VDV500-123 (sold separately)
- Auto Power-Off feature; 10-minutes in test mode, 60-minutes in tone mode
- Soft, slip-resistant, rugged overmold for easy gripping and durability
- Replaceable 2 x AAA batteries (included)
- Replaceable self-storing remote (included)
- Replacement remote available; sold separately (Cat. No. VDV999-200)
Warnings: Designed for use on unpowered/dark cable systems; Do NOT connect to live AC power; For indoor use only.
| Type | DATA, Voice, LAN |
| Application | Cable Testing |
| Special Features | Backlit LCD |
| Cable Type | Shielded or Unshielded; Cat7, Cat6/6A, Cat5E, Cat3 |
| Overall Dimensions |
Length: 5'' (13 cm)
Height: 1'' (2.5 cm)
Width: 2.5'' (6.4 cm)
|
| Material | Plastic and Stamped Metal |
| Test-n-Map ID Remotes | 1 |
| Batteries | 2 × AAA Alkaline |
| Battery Life | Active: 80 hr; Standby: 3 yr. |
| Drop Protection | 2' (0.6 m) |
| Supported Remotes | (1) Self-Storing |
| Connection & Adapter Types | RJ45 |
| Display | LED |
| Multiple Style Tone Generator | Yes |
| Faults Detected | Pass, Miswire, Open-Fault, Short-Fault, Split Pair and Shield |
| Test & Measure Types | Data, RJ45 |
| Included | Tester, Remote, 2 × AAA Alkaline Batteries |
| Weight | 4.3 oz (122 g) |
