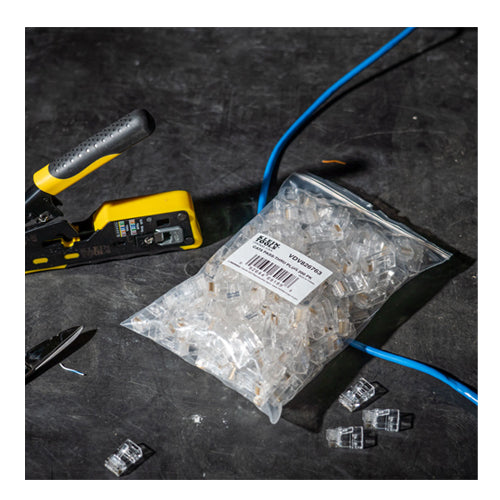

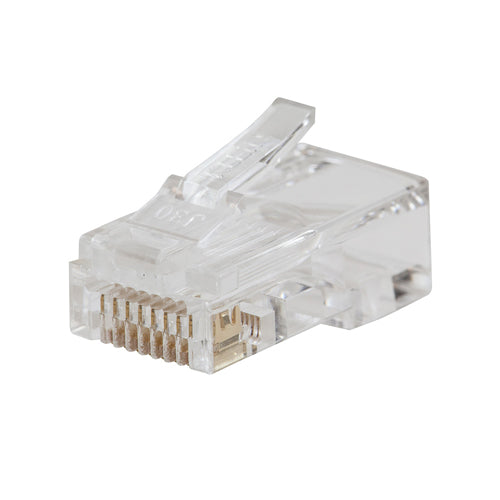

Klein Tools VDV826-763, Pass-Thru™ Modular Data Plugs, RJ45-CAT6, 200-Pack
Regular price
$81.98
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
* List price is for 200 Packs
Exclusive Klein-designed Pass-Thru™ modular plugs for fast, reliable connector installations. Cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper VDV226-110, and eliminates wasted materials. These CAT6 connectors are fully compliant with all PoE standards.
- Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
- CAT6 Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
- 50 µ-inch minimum gold plating on all contact surfaces
- Fully compliant with Power Over Ethernet (PoE and PoE+) standards
- Category 6 performance per EIA/TIA B.2. and RoHS compliant
- For use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110
- 8 position, 8 contact Pass Through style data plug for solid or stranded cable
| Type | Modular |
| Application | Voice and Data |
| Special Features | Pass-Thru Technology; Meets All PoE Standards |
| Overall Length | 0.875'' (2.2 cm) |
| Overall Height | 0.453'' (1.2 cm) |
| Overall Width | 0.094'' (0.2 cm) |
| Material | PVC Plastic; Gold Plated Contacts |
| Connector Type | RJ45 |
| Cable Type | CAT6 |
| Position & Contacts | 8P8C |
| Connector Color | Clear |
| Solid Conductor Wire | Yes |
| Stranded Conductor Wire | Yes |
| Package Quantity | 200 |
| Weight | 9.8 oz (278 g) |
