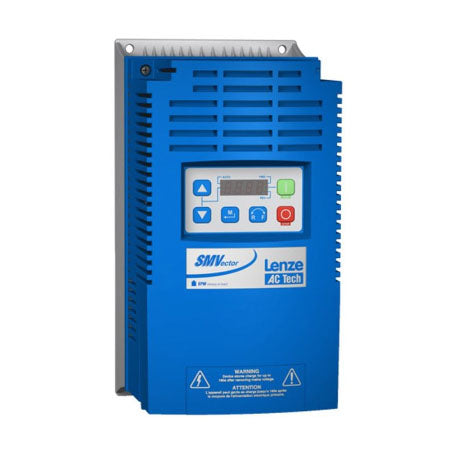

Lenze ESV222N06TXB, 3-Phase SM Vector Variable Frequency Drive Inverter, 2.2kW, 3HP, 600V 3Ph Input, 3.9 Amp Output, NEMA 1
Regular price
$1,306.99
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The SMVector range of inverter drives offer fast dynamic torque response, sophisticated auto-tuning and impressive low speed operation from a compact, and simple to use package. The SMVector range is designed for motor applications where dynamic speed and torque control are required, ideal for conveyors, packaging lines and Fan and Pump systems.
range of applications including:
˘ Food processing machinery
˘ Packaging machinery
˘ Material handling/conveying systems
˘ Fan and Pump systems
| Series |
SMVector
|
| Voltage | 600V |
| Phase | 3 Phase |
| Enclosure | IP31/NEMA 1 |
| Horse power rating | 3HP |
|
Power
|
2.2kW |
|
Output Current
|
3.9 A |
|
Size
|
G2 |
| Communications installed | None |
| EMC Filter | None |
| Disconnect Switch | None |
| Dimensions | 7.6 in H x 3.9 in W x 5.5 in D |
| Certification | CE,cULus,UL,ROHS |
