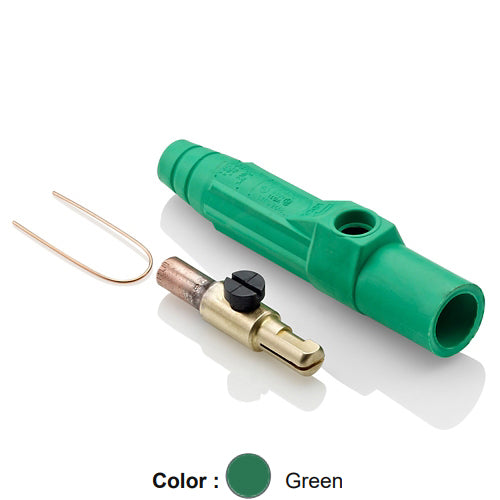

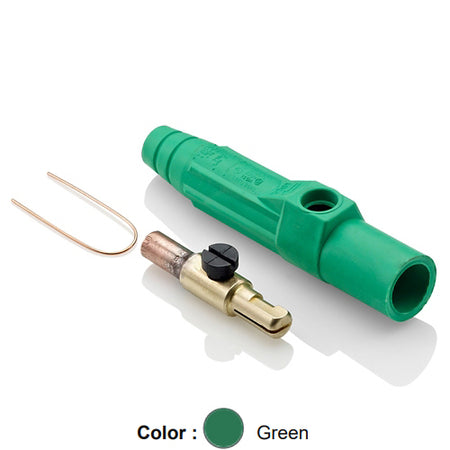

Leviton 15D23-UG, 15 Series Single Pole Cam-Type Male Plug, Contact & Insulator, Detachable, Industrial Grade, 140 Amp Max, 600 VAC/DC Max, Crimp Tube Termination, #8 - #4 AWG, Green
Regular price
$49.94
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
- NEMA 3R rated for outdoor use when mated
- UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
- Color-coding provides fast and easy phase identification
- Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
| Gender | Male |
| Color | Green |
| Pole | (1P) Single Pole |
| Max. Amperage | 140 Amp |
| Max. Voltage | 600 Volt |
|
Cable Range |
8-4 AWG |
| Connection Type | Crimped |
| Sleeve | Thermoplastic Elastomer (TPV-Santoprene) |
| Contact | Brass |
| NEMA Rating | Type 3R |
| Certifications | UL, CSA |
