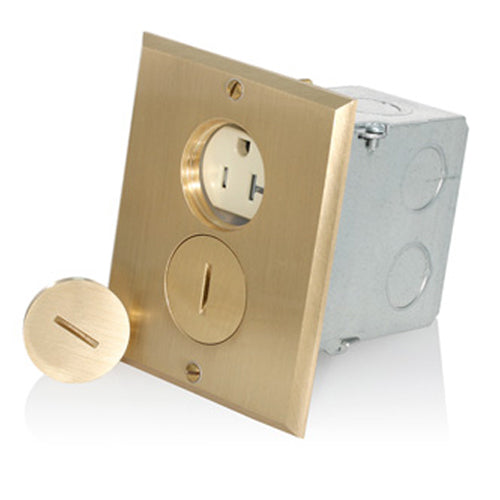

Leviton 25349-TFB, 1-Gang Floor Box Receptacle Assembly, 20A 125V, NEMA 5-20R, 2-Pole, 3-Wire, Tamper-Resistant Duplex Receptacle, Straight Blade, Commercial Grade, Brass-Finish Plate, Ivory Receptacle
Regular price
$182.58
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
For low profile, in-floor receptacle installations, our Floor Box Receptacle Assemblies are the perfect fit. Available in both 15 & 20 Amp 1- and 2-gang configurations, these devices are suitable for wood frame construction with carpet, wood, tile, and vinyl finished flooring. Common applications include a variety of uses from home office workstations to high-end stages and entertainment venues.
| Type | Wood Frame |
| Cover Style | Rectangle |
| Feature | Tamper-Resistant |
| Color | Brass |
| Receptacle | Ivory |
| NEMA | 5-20R |
| Amperage | 20 A |
| Voltage | 125 VAC |
| Pole | 2 |
| Wire | 3 |
| Grounding | Self Grounding |
| Body Material | Nylon |
| Clamp Nuts | Zinc-Plated Steel |
| Floorplate Material | Solid Brass 0.060 In Thick |
| Strap Material | Zinc-Plated Steel |
| Termination | Back & Side |
| Terminal Accom. | 14-10 AWG |
| Operating Temperature | -40°C to 60°C |
| Certifications | cCSAus, NOM-ANCE |
