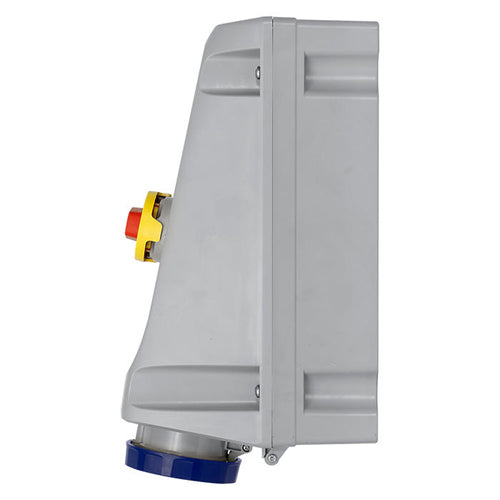

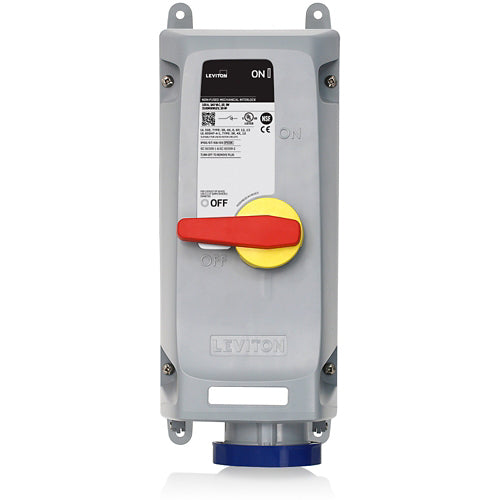

Leviton 3100MI6WLEV, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Mechanical Interlock, Industrial Grade, 100A 240V, 2-Pole, 3-Wire, IP66/IP67/IP68/IP69/IP69K, Watertight, Non-Fused, Blue
Regular price
$2,599.30
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Series | LEV Series |
| Device Type | Non-Fused Mechanical Interlock |
| Clock Position | 6 o'clock |
| Color | Blue |
| Configuration | North American |
| Amperage | 100 A |
| Pole | 2 |
| Voltage | 240 VAC |
| Wire | 3 |
| Horsepower Rating | 20HP |
| Phase | 3-Phase |
| Contact Material | Nickel plated copper alloy |
| Handle Material | PBT+PC with TPE Overmold |
| Housing Material | PBT+PC |
| Housing Screws | 303 Stainless Steel |
| IP Rating | IP66, IP67, IP68, IP69, IP69K |
| NEMA Enclosure Type | 3R, 4X, 12 |
| Operating Temperature | -40°C to 75°C |
| UV Resistance | UV stabilized F1 rated enclosure |
| Certifications | CSA, UL |
| Warranty | 5-Year Limited |
