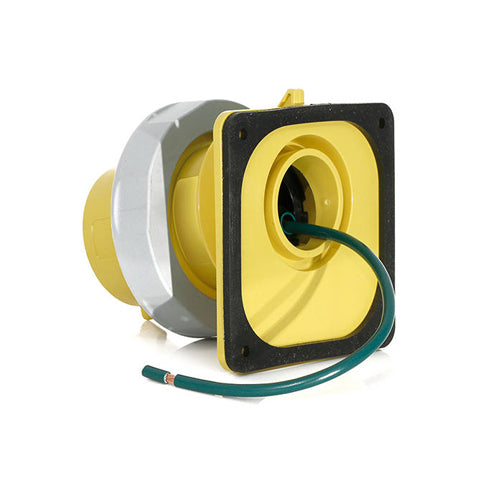

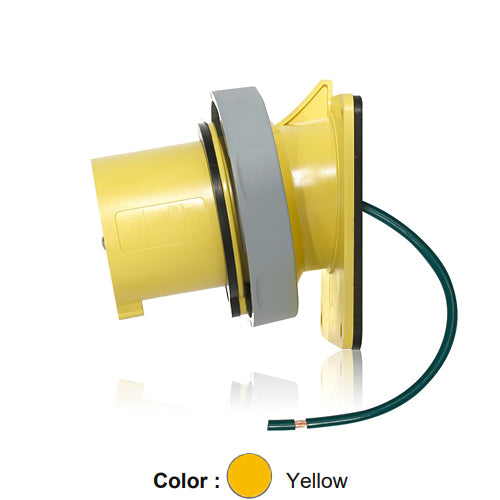

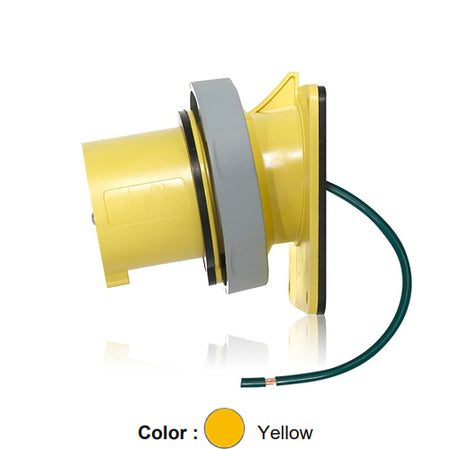

Leviton 320B4WLEV, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Inlet, Industrial Grade, 20A 125V, 2-Pole, 3-Wire, IP66/IP67/IP68/IP69K, Watertight, Yellow
Regular price
$181.97
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Series | LEV Series |
| Device Type | Inlet |
| Clock Position | 4 o'clock |
| Color | Yellow |
| Configuration | North American |
| Amperage | 20 A |
| Pole | 2 |
| Voltage | 125 VAC |
| Wire | 3 |
| Assembly Screws | 303 Stainless Steel |
| Contact Carrier | Glass filled Nylon |
| Housing | PBT + PC |
| Terminal Screws | 303 Stainless Steel |
| Corrosion Resistance | Salt fog tested |
| IP Rating | IP66, IP67, IP68, IP69K |
| NEMA Enclosure Type | 3R, 4X, 6P and 12 |
| Conductor Range | #14 AWG to #10 AWG |
| Operating Temperature | -35°C to +66°C |
| UV Resistance | UV stabilized F1 rated housings |
| Certifications | CE, CSA, NOM, RoHS, UL |
| Warranty | 5-Year Limited |
