Leviton 41920-A01, 4/8 Ohm Mixing Audio Amplifier, Includes Power Adapter (24VDC)
Regular price
$581.09
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

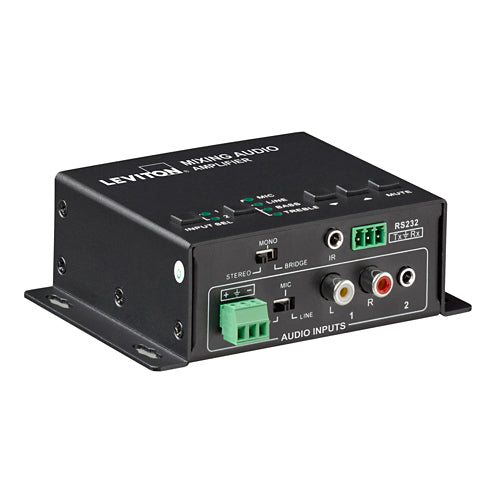

The Mixing Audio Amplifier is ideal for classrooms, small conference rooms, and light commercial or retail installations. The compact Class D digital amplifier includes two stereo audio inputs and one balanced mic input, which support EQ control and mic mixing. With 2 x 20 Watt at 4 Ohm as the default output, it can be switched to 1 x 40 Watt at 8 Ohm by bridge connection.
- Three switchable inputs: two stereo audio and one mic
- Mic mixer function with independent control
- Mic input supports 48 V phantom power
- Line-audio output jack with controllable volume
- Volume, bass, treble, and mute controls
- Auto output mute on no input
- IR and RS232 control capability
- 20Hz – 20KHz frequency response
- Three output modes: 2 X 20W stereo, 1 X 40W bridge mono, and 2 X 20W dual mono
- LED indicators for power and control function feedback
- Locking power supply input connector
