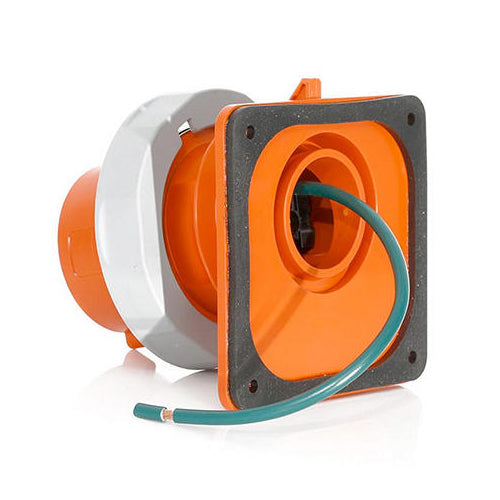

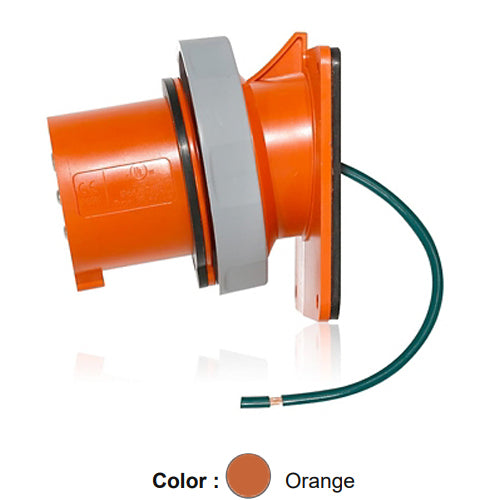

Leviton 420B12WLEV, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Inlet, Industrial Grade, 20A 125/250V, 3-Pole, 4-Wire, IP66/IP67/IP68/IP69K, Watertight, Orange
Regular price
$254.70
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Series | LEV Series |
| Device Type | Inlet |
| Clock Position | 12 o'clock |
| Color | Orange |
| Configuration | North American |
| Amperage | 20 A |
| Pole | 3 |
| Voltage | 125/250 VAC |
| Wire | 4 |
| Assembly Screws | 303 Stainless Steel |
| Contact Carrier | Glass filled Nylon |
| Housing | PBT |
| Terminal Screws | 303 Stainless Steel |
| Corrosion Resistance | Salt fog tested |
| IP Rating | IP66, IP67, IP68, IP69K |
| NEMA Enclosure Type | 3R, 4X, 6P and 12 |
| Conductor Range | #10 AWG to #8 AWG |
| UV Resistance | UV stabilized F1 rated housings |
| Certifications | CE, CSA, NOM, RoHS, UL |
| Warranty | 5-Year Limited |
