Leviton 430MI7WLEVC, LEV Series North American-Rated IEC Pin & Sleeve Mechanical Interlock with Remote Monitoring via Wi-Fi Communication, Inform Technology, Industrial Grade, 3-Phase, 30A 480V, 3-Pole, 4-Wire, Watertight, Non-Fused, Red
Regular price
$2,063.89
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
30 Amp, 480 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Mechanical Interlock with Local and Remote Monitoring Inform Technology, Industrial Grade, IP66/IP67/IP68/IP69/IP69K, Watertight, Non-Fused, Wi-Fi (no hub required). Requires Internet connection for remote monitoring. – Red (480 VAC)
- Inform technology identifies disturbances that can impact machine performance and minimize unplanned downtime by monitoring line- and load-side voltage, liquid accumulation inside the enclosure, ground continuity and welded contacts
- The Inform app provides remote monitoring of your devices in real-time, so you can be notified immediately of any abnormal operating conditions - (mobile and desktop versions available)

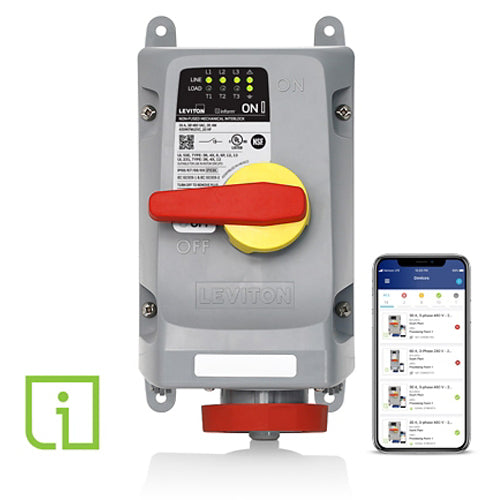

- Green LEDs on the cover provide a visual indication that the device is operating under normal conditions, flash red if there is a failure, or flash yellow if there is a buildup of liquid inside of the enclosure that may lead to a potential failure
Compatible with Wi-Fi® 802.11 a/b/g/n networks @ 2.4GHz and 5GHz with WPA or WPA2 security.
If using a variable frequency drive (VFD), it must be installed between the mechanical interlock switch and the motor.
| Series | LEV Series |
| Device Type | Non-Fused Mechanical Interlock |
| Feature | Communicating, Remote Monitoring via Wi-Fi |
| Clock Position | 7 o'clock |
| Color | Red |
| Configuration | North American |
| Amperage | 30 A |
| Pole | 3 |
| Voltage | 480 VAC |
| Wire | 4 |
| Phase | 3-Phase |
| Horsepower Rating | 20HP |
| Contact Material | Nickel Plated Brass |
| Gasket Material | Chloroprene |
| Handle Material | PBT+PC with TPE Overmold |
| Housing Material | PBT+PC |
| Housing Screws | 303 Stainless Steel |
| IP Rating | IP66, IP67, IP68, IP69, IP69K |
| NEMA Enclosure Type | 3R, 4X, 12 |
| Operating Temperature | -40°C to 60°C |
| UV Resistance | UV stabilized F1 rated enclosure |
| Certifications | CSA, UL |
| Warranty | 5-Year Limited |
