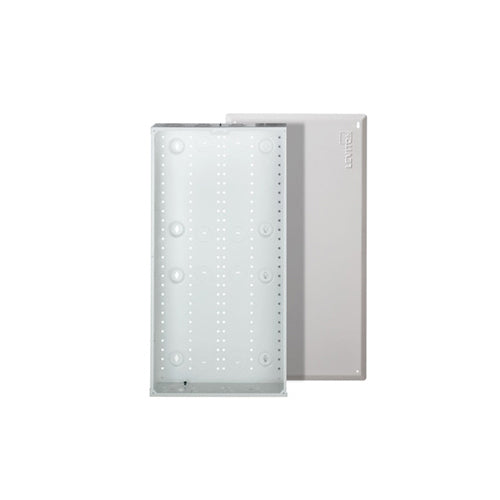

Leviton 47605-28W, 28'' Structured Media Enclosure and Flush Mount Cover, Metal, White
Regular price
$199.01
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
28'' Structured Media Enclosures terminate home-run wires from wall outlets and provide a distribution point for voice, data, and video wiring in a residence or multiple dwelling unit. These enclosures are ideal for new installations or retrofits. They can be surface mounted or recessed by mounting between wall studs (on 16-inch centers), using provided wood screws for a clean and professionally finished appearance.
- Cutout pattern in bottom accommodates single gang or full width
- AC power modules and Mini and Universal DC power supplies
- Mounting slots on the enclosure simplify adjustment for different sheetrock depths
- Sheetrock depth marks (1/2-inch, 5/8-inch and 3/4-inch) on the enclosure simplify alignment
- Lance slots provide clean cable management within the enclosure
- Product may be surface or recess mounted
- Ships with a cardboard insert to help prevent drywall debris or paint overspray from entering the enclosure during the rough-in stage of installation
- Keyhole slots on the cover allow for easier installation
- Multiple knockouts on the top support conduit up to two inches in diameter and facilitate cable routing and entry
- Self-healing foam grommets protect cable bundles
- Holds quarter-, half-, and full-width expansion modules, with the ability to mount most modules vertically or horizontally
- Three enclosure cover types are available: Flush-Mount Cover, Economy Hinged Door, and Premium Vented Hinged Door
| Item | Enclosure and Flush Mount Cover |
| Color | White |
| Depth | 3.85 Inch |
| Height | 28 Inch |
| Width | 14.38 Inch |
| Max. Module Capacity | 8 |
| Enclosure Material | Steel |
| Knockouts | Multiple up to 2 Inch |
| Gauge of Steel | 18 Gauge |
| Paint Finish | Powder-Coated |
| Notes | Module count dependant of the type used |
| Certifications | ACA/CULUS/UL/TIA/EIA/FCC |
| Warranty | 2-Year Limited |
