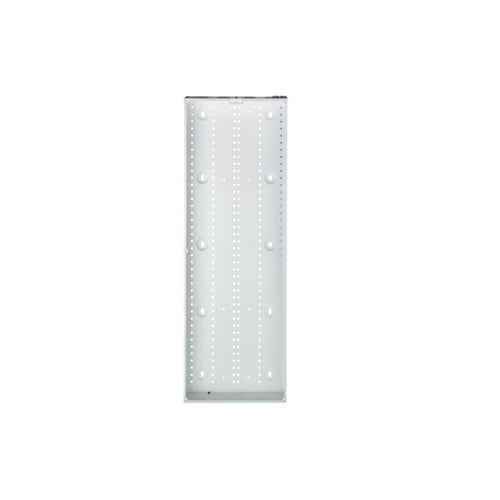

Leviton 47605-42N, 42'' Structured Media Enclosure, Metal, White
Regular price
$155.38
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
42" Structured Media Enclosures terminate home-run wires from wall outlets and provide a distribution point for voice, data, and video wiring in a residence or multiple dwelling unit. These enclosures are ideal for new installations or retrofits. They can be surface mounted or recessed by mounting between wall studs (on 16-inch centers), using provided wood screws for a clean and professionally finished appearance.
- Positive stops on housing side walls prevent enclosure from falling through studs during installation.
- One piece white steel unit hold full and half width expansion modules.
- Mounting guides on cover align screw-holes and reduce the chances of dropping during attachment.
- Powder-coated white cover features a 3/4 Inch overlap to hide irregular drywall cuts.
- Multiple knock-outs on top and bottom including two new 2 Inch knock-outs on top, facilitate cable entry and routing.
- Cut-out in base of enclosure for mounting single gang J-Box kit.
- Six 3 Inch square self-healing foam grommets accommodate cable bundles.
| Item | Enclosure Only |
| Color | White |
| Depth | 3.85 Inch |
| Height | 42 Inch |
| Width | 14.38 Inch |
| Max. Module Capacity | 12 |
| Enclosure Material | Steel |
| Knockouts | Multiple up to 2 Inch |
| Gauge of Steel | 18 Gauge |
| Paint Finish | Powder-Coated |
| Notes | Module count dependant of the type used |
| Certifications | ACA/CULUS/UL/TIA/EIA/FCC |
| Warranty | 2-Year Limited |
