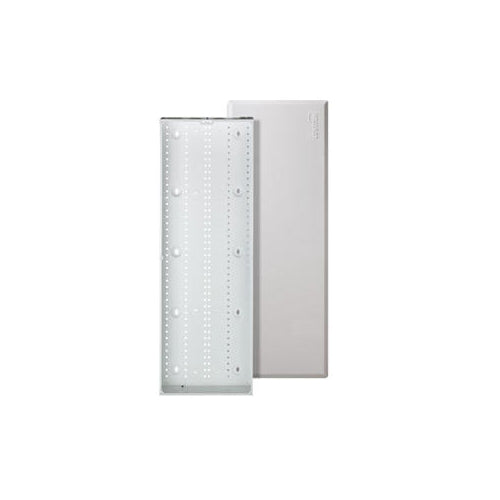

Leviton 47605-42W, 42'' Structured Media Enclosure with Flush Mount Cover, Metal, White

In stock
SKU: 47605-42W
Regular price $278.61

Use this text to encourage communication or promote sharing on social networks.

You can also add links

42" Structured Media Enclosures terminate home-run wires from wall outlets and provide a distribution point for voice, data, and video wiring in a residence or multiple dwelling unit. These enclosures are ideal for new installations or retrofits. They can be surface mounted or recessed by mounting between wall studs (on 16-inch centers), using provided wood screws for a clean and professionally finished appearance.

  • Positive stops on housing side walls prevent enclosure from falling through studs during installation.
  • One piece white steel unit hold full and half width expansion modules.
  • Mounting guides on cover align screw-holes and reduce the chances of dropping during attachment.
  • Powder-coated white cover features a 3/4 Inch overlap to hide irregular drywall cuts.
  • Multiple knock-outs on top and bottom including two new 2 Inch knock-outs on top, facilitate cable entry and routing.
  • Cut-out in base of enclosure for mounting single gang J-Box kit.
  • Six 3 Inch square self-healing foam grommets accommodate cable bundles.
Item Enclosure and Flush Mount Cover
Color White
Depth 3.85 Inch
Height 42 Inch
Width 14.38 Inch
Max. Module Capacity 12
Enclosure Material Steel
Knockouts Multiple up to 2 Inch
Gauge of Steel 18 Gauge
Paint Finish Powder-Coated
Notes Module count dependant of the type used
Certifications ACA/CULUS/UL/TIA/EIA/FCC
Warranty 2-Year Limited
