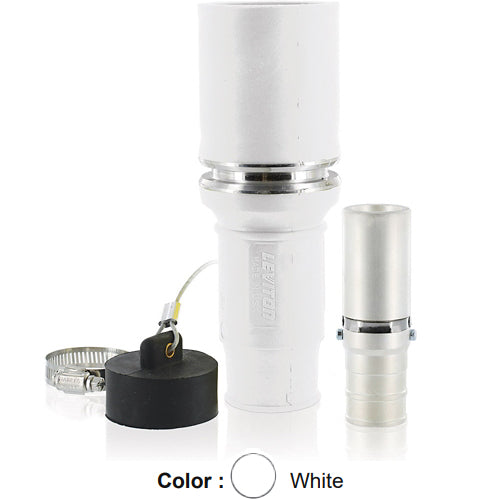

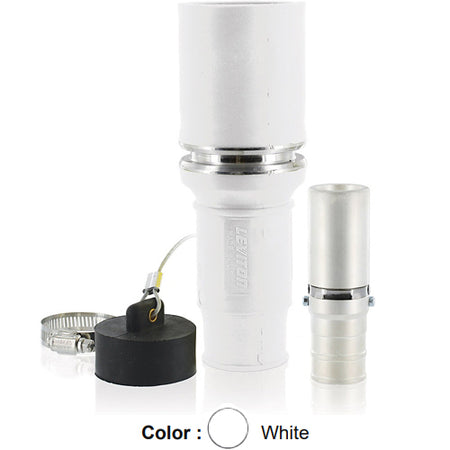

Leviton 49F53-W, Rhino-Hide 49 Series Single Pole Female Plug, Industrial Grade, Crimped, 535 MCM Cable, 1000 Volt, 898 Amp Max, White
Regular price
$740.54
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
- Color-coded connector insulator for quick visual identification of circuit and phase connections
- UV stable, high-performance TPV insulator resists cracking for greater service life
- Leviton plugs mate with other manufacturers' high-amperage single pole plugs and receptacles for fast, easy change out.
| Gender | Female |
| Color | White |
| Pole | (1P) Single Pole |
| Max. Amperage | 898 Amp |
| Max. Voltage | 1000 Volt |
|
Cable Clamp |
Stainless Steel |
| Connector Insulator | Santoprene TPV |
| Connector Retention Ring | Anodized Aluminum |
| Dust Cap | Santoprene TPV |
| Male Contact | Silver-Plated High Conductivity Alloy |
| NEMA Rating | Type 3R |
| Certifications | UL |
