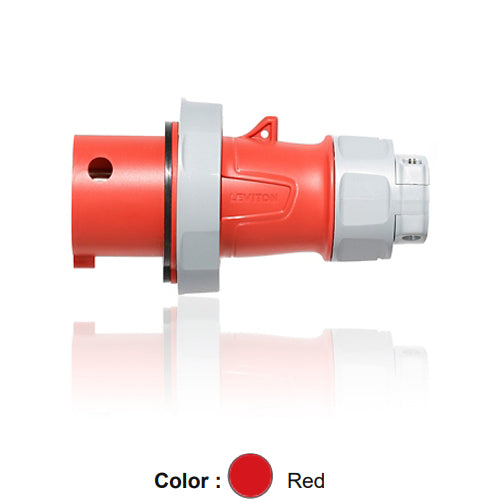

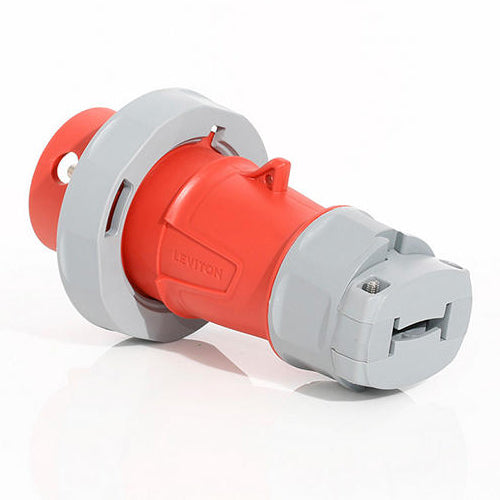

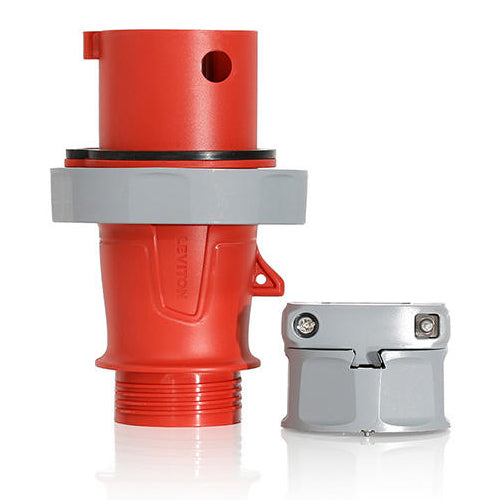

Leviton 520P7WLEV, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Plug, Industrial Grade, 3-Phase, 20A 277/480V, 4-Pole, 5-Wire, IP66/IP67/IP68/IP69K, Watertight, Red
Regular price
$285.90
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Series | LEV Series |
| Device Type | Plug |
| Clock Position | 7 o'clock |
| Color | Red |
| Configuration | North American |
| Amperage | 20 A |
| Pole | 4 |
| Voltage | 277/480 VAC |
| Wire | 5 |
| Phase | 3-Phase |
| Horsepower Rating | 7.5 HP |
| Contact Carrier | Glass filled Nylon |
| Housing | Impact Modified Nylon |
| Terminal Screws | 303 Stainless Steel |
| Corrosion Resistance | Salt fog tested |
| IP Rating | IP66, IP67, IP68, IP69K |
| NEMA Enclosure Type | 3R, 4X, 6P and 12 |
| Conductor Range | #14 AWG to #10 AWG |
| Operating Temperature | -40°C to 60°C |
| UV Resistance | UV stabilized F1 rated housings |
| Certifications | CE, CSA, NOM, RoHS, UL |
| Warranty | 5-Year Limited |
