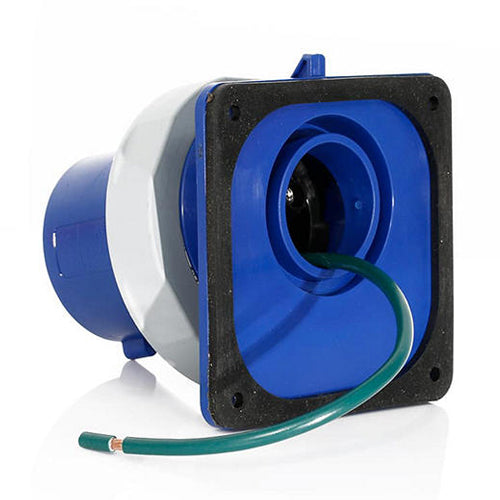

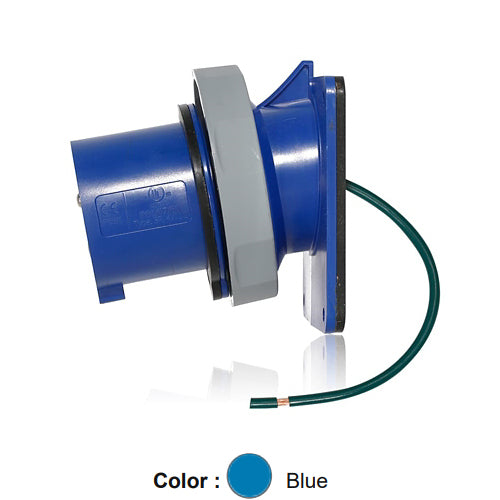

Leviton 530B9WLEV, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Inlet, Industrial Grade, 3-Phase, 30/32A 120/208V, 4-Pole, 5-Wire, IP66/IP67/IP68/IP69K, Watertight, Blue
Regular price
$378.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Series | LEV Series |
| Device Type | Inlet |
| Clock Position | 9 o'clock |
| Color | Blue |
| Configuration | North American |
| Amperage | 30/32 A |
| Pole | 4 |
| Voltage | 120/208 VAC |
| Wire | 5 |
| Phase | 3-Phase |
| Horsepower Rating | 3 HP |
| Contact Carrier | Glass filled Nylon |
| Housing | PBT |
| Terminal Screws | 303 Stainless Steel |
| Corrosion Resistance | Salt fog tested |
| IP Rating | IP66, IP67, IP68, IP69K |
| NEMA Enclosure Type | 3R, 4X, 6P and 12 |
| Conductor Range | #12 AWG to #8 AWG |
| UV Resistance | UV stabilized F1 rated housings |
| Certifications | CE, CSA, NOM, RoHS, UL |
| Warranty | 5-Year Limited |
