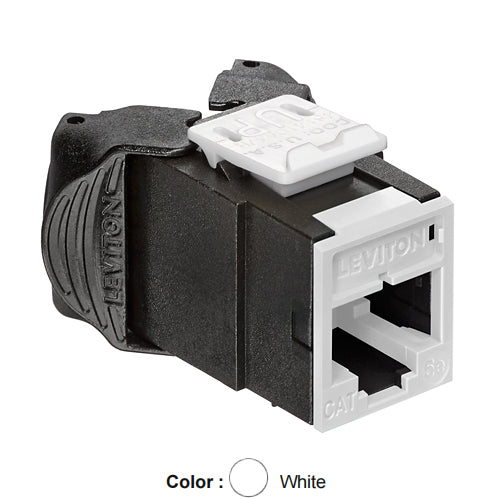

Leviton 5EUJK-RW5, ATLAS-X1 Cat 5e UTP Quickport Jack, White

The ATLAS-X1 Category 5e Component-Rated UTP QUICKPORT Jack is part of a complete ATLAS-X1 Cat 5e UTP system, ideal for the most demanding network applications. The jack supports emerging technologies and will easily adapt to network trends.

• Independently tested and guaranteed to exceed all component, permanent link, and channel margins
• Patented Retention Force Technology™ (RFT) protects against tine damage and increases system longevity
• For Power over Ethernet, RFT maintains contact force between plug and connector, preventing arcing from intermittent disconnects
• Unique design supports tool-free termination/re-termination and requires no specialized termination tool
• Short connector design supports a wider range of applications (e.g. shallow boxes, enclosures, bend radius)
• Terminates from 26 to 22 AWG solid or stranded conductors for use on various cable types
• Robust IDCs can withstand 20 re-termination cycles and connector contacts are tested for 750 plug-mating cycles to ensure system longevity
• Available in 13 ANSI/TIA-606-C compatible colors
• Select jacks supplied with interchangeable icons (voice, data, A/V, and blank, color coded to match the connector face) for easy identification and tracking of data, voice, or other functions
• Jacks with internal shutter protects against dust and debris
• Solid metal body dissipates 53% more heat than traditional plastic, minimizing damage from excess heat in PoE applications
• Tine geometry prevents arcing damage where plug and connector make contact
• Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
• ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications
