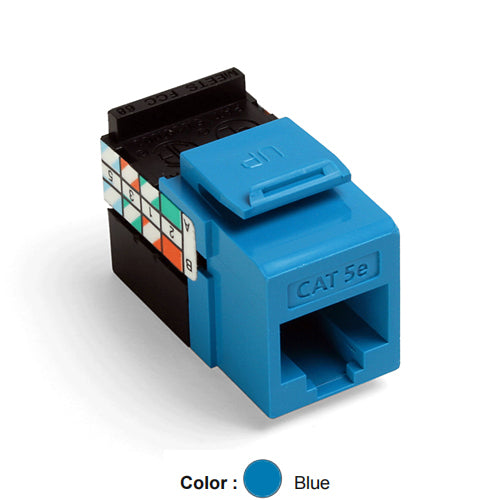

Leviton 5G108-RL5, GIGAMAX Cat 5e UTP Quickport Jack, Blue
Regular price
$9.70
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The GIGAMAX Category 5e UTP QUICKPORT Copper Jack is designed to be used with any Category 5e UTP structured cabling system. The modular jack features a one-piece narrow design that supports high port density in a small area, and is ideal for use in residential, MDU, and high megabit applications.
- Dual wiring code label allows connector to be wired to either T568A or T568B
- Individual port configurability allows specification flexibility
- Robust one-piece lead-frame design increases power-carrying capacity and efficiency, while providing improved durability
- Narrow connector allows high port density in a small area
- Will exceed IEEE 802.3bt standard up to 0.7 amps (140 watts) continuously
- Supports high-megabit and shared-sheath applications
- IEEE 802.3bt PoE Type 1 (15.4 Watts) formerly 802.3af, Type 2 (30 Watts) formerly 802.3at, Type 3 (60 Watts), Type 4 (90 Watts)
- Cisco UPoE (60 Watts), UPoE+ (90 Watts)
- Power over HDBaseT™ PoH (95 Watts)
- UL 2043 Plenum Certified
| Product Family | Jacks |
| Brand | GIGAMAX |
| Color | Blue |
| Category Rating | Cat 5e |
| Shielding | Unshielded |
| Termination Type | Punchdown |
| Packaging | Single |
| Shutter Mechanism | None |
