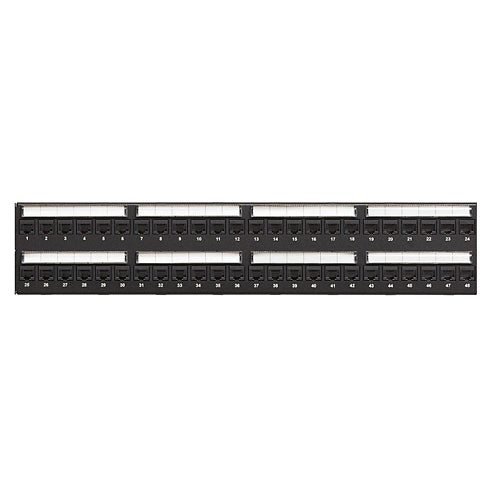

Leviton 6A586-U48, Cat 6A Flat 110-Style Patch Panel, Magnifying Lens Label Holder, 48-Port, 2RU, Cable Management Bar Included, Black

Cat 6A UTP Flat 110-Style Patch Panels are designed for use with industry-standard 19-inch racks and cabinets for telecommunication room and data center applications. Patch panels exceed all component performance requirements in the ANSI/TIA-568.2-D standard and the Class EA component requirements for the ISO/IEC 11801-1 and EN 57013-1 standards from 1 MHz to 500 MHz to support the IEEE 802.3an standard for 10GBASE-T network performance. Patch panels feature industry-standard, in-line IDCs and are component rated, which provides greater Cat 6A performance margins in link and channel field testing.

• Independently tested and verified by Intertek (ETL) for Cat 6A component performance
• 110 IDC termination fields support 26 to 22 AWG solid copper conductors
• Conductor-retention feature holds individual conductors in place during termination
• Pair Separation Towers facilitate separation of Cat 6A conductors
• Separated blocks provide room to work with larger Cat 6A cables and help to identify first-pair position
• Terminates up to 50% faster than Cat 6A panels requiring additional termination manager
• Reversible card shows T568 A and B wiring schemes separately
• Industry-standard port density: 24-port 1RU and 48-port 2RU
• IDC stuffer caps provide termination strain relief
