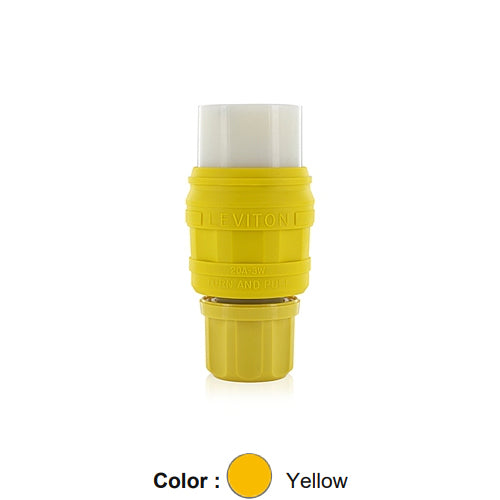

Leviton 79W48-C, Wetguard Watertight Straight Blade Connector for Single Inlet, Industrial Grade, 20A 250V, NEMA 6-20R, 2-Pole, 3-Wire, Grounding, Yellow
Regular price
$64.80
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
UNIQUE DESIGN- Exclusive “tongue and groove” design provides superior ingress protection from water, dirt and debris
HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
THE BRAND YOU TRUST- Backed by a lifetime warranty
WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
UNIQUE DESIGN- Exclusive “tongue and groove” design provides superior ingress protection from water, dirt and debris
HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
THE BRAND YOU TRUST- Backed by a lifetime warranty
| Brand | Wetguard |
| Device Type | Straight Blade Connector |
| Color | Yellow |
| NEMA | 6-20R |
| Amperage | 20 A |
| Voltage | 250 VAC |
| Pole | 2 |
| Wire | 3 |
| Grounding | Grounding |
| Body Material | Nylon |
| Blades/Contacts | Electroless Nickel-coated Brass |
| Assembly Screws | Stainless steel, Non-Magnetic |
| Enclosure Rating | NEMA 4, 4X, 12 IEC IP66 |
| Operating Temperature | -40°C to 60°C |
| Terminal Accom. | #16 AWG to #10 AWG |
| Environment | Wet |
| Certifications | CSA, UL, NOM |
| Warranty | Limited Lifetime Warranty |
