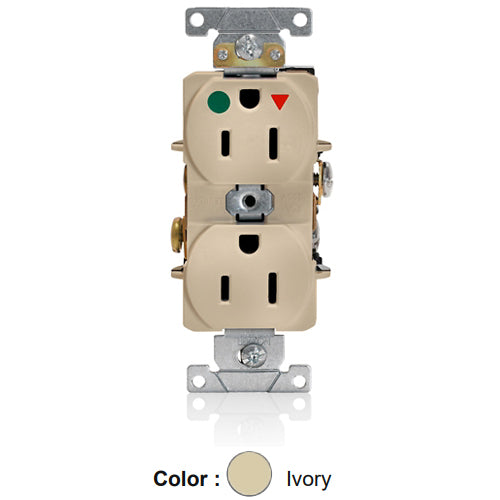

Leviton 8200-IGI, Standard Straight Blade Duplex Receptacle, Heavy-Duty Hospital Grade, Smooth Face, Isolated Ground, 15A 125V, NEMA 5-15R, 2-Pole, 3-Wire, Back and Side Wire, Ivory
Regular price
$29.50
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Device Type | Duplex Receptacle Outlet |
| Grade | Heavy-Duty Hospital Grade |
| Feature | Smooth Face |
|
Function |
Isolated Ground |
| Color | Ivory |
| NEMA | 5-15R |
| Amperage | 15 A |
| Voltage | 125 VAC |
| Pole | 2 |
| Wire | 3 |
| Body Material | PBT Polyester Blend |
| Strap Material | Steel (Galvanized G60) |
| Mounting Screws | Triple-Drive Plated Steel |
| Termination | Back and Side Wire |
| Terminal Screws | #8 Triple-Drive Brass |
| Wire Type | Stranded or Solid |
| Operating Temperature | -40°C to 60°C |
| Certifications | cULus, NOM-ANCE, RoHS |
| Warranty | 10-Year Limited |
