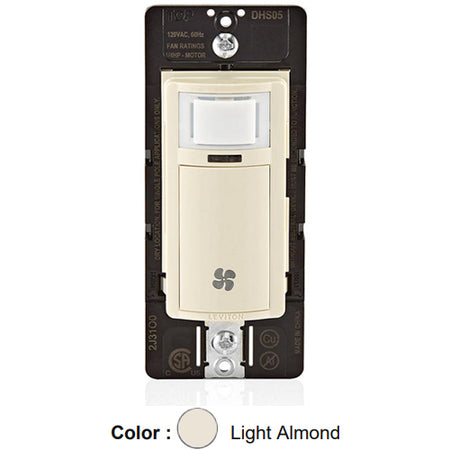

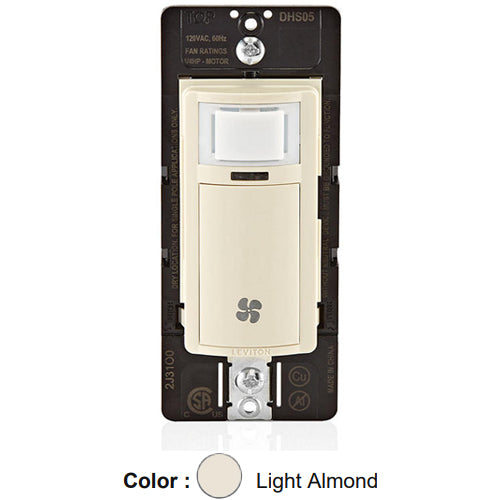

Leviton DHS05-1LT, Decora In-Wall Humidity Sensor and Fan Control, Residential Grade, Single Pole, 1/4 HP Motor, Light Almond
Regular price
$44.80
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

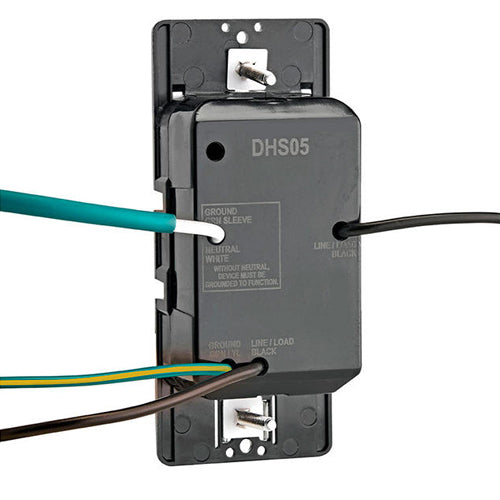

Decora Humidity Sensor and Fan Control, single pole, 1/4 HP Motor, 300W LED/CFL, 600W Incandescent/Halogen, 400VA Magnetic Low Voltage, 400VA Electronic Low Voltage. Can be installed with or without a neutral wire, line and load wires are interchangeable, wallplate sold separately. Can be used to comply with the requirements of 2019 and 2022 California Title 24, Part 6, Indoor Air Quality and Mechanical Ventilation, 2019 and 2022 CALGREEN, Part II, Indoor Air Quality and Exhaust and meets requirements of ASHRAE 62.2.
| Style Name | Decora |
| Adjustment | Programmable |
| Grade | Residential |
| Sensor Type | Humidity |
| Switch | Relay |
| Switch Type | Single-Pole |
| Time Delay | 10, 20, 30 or 45 minutes |
| Wallplate | Not Included |
| Voltage |
120 VAC |
| Color | Light Almond |
| Load Rating | 600W Incandescent, 300W LED/CFL, 400VA ELV, 400VA MLV, 1/4 HP Motor |
| LED Color | Green and Red |
| Dimensions | W 1.73'' X D 0.95'' X H 4.13'' |
| Neutral | Optional |
| Wiring | Ground or Neutral Required |
| Certifications | CSA, FCC, Title 24, CALGREEN, ASHRAE 62.2 |
| Warranty | 5-Year Limited |
