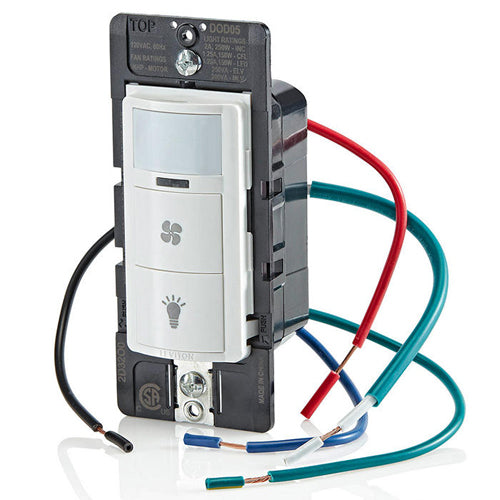

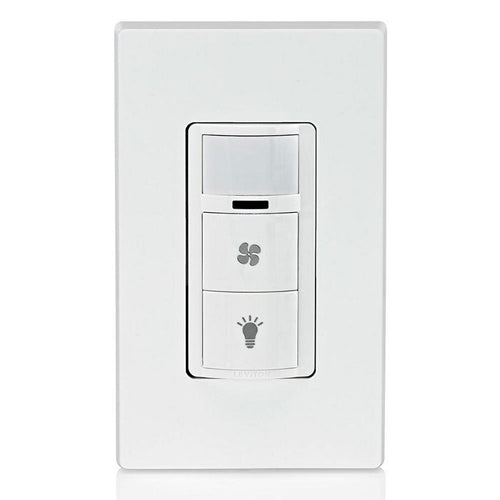

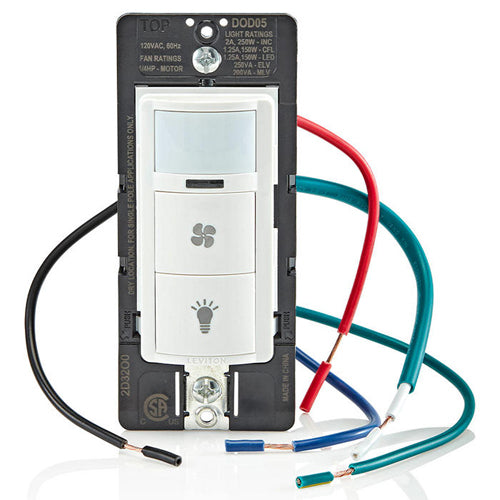

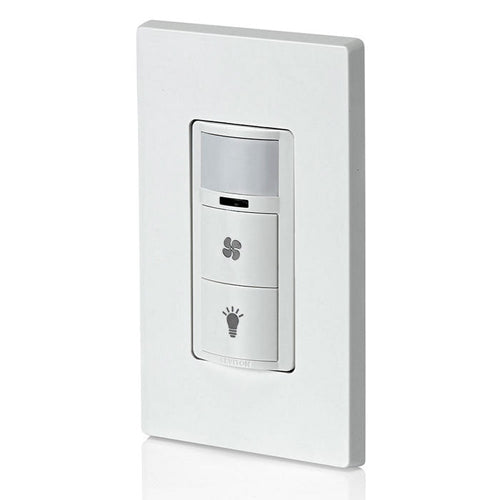

Leviton DOD05-1LW, Decora Combination Wall Switch Passive Infrared (PIR) Motion Sensor and Fan Control, Residential Grade, Single Pole, 1/4 HP Fan, 2A Resistive, White
Regular price
$90.80
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

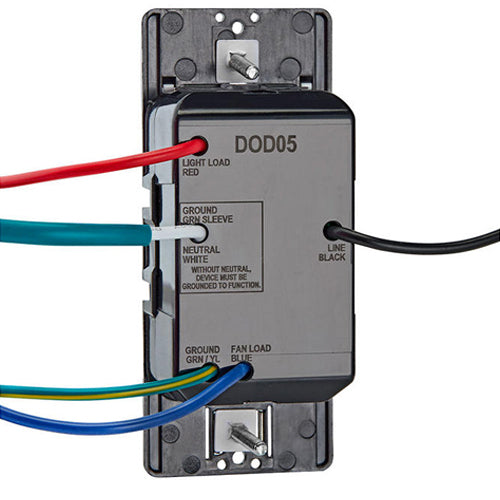

Decora Combination Occupancy Sensor with Fan Switch, single pole/single pole. Fan Load (Blue Wire): 1/4 HP Fan, 300W LED/CFL, 600W Incandescent/Halogen, 400VA MLV/ELV. Light Load (Red Wire): 150W LED/CFL, 250W Incandescent/Halogen, 200VA MLV, 250VA ELV, 2A Resistive. Can be installed with or without a neutral wire, wallplate sold separately. Can be used to comply with the requirements California Title 24, Part 6, Automatic-off Controls and IECC.
| Style Name | Decora |
| Adjustment | Adjustment |
| Auto-ON/Auto-OFF | Yes |
| Wallplate | Not Included |
| Grade | Residential |
| Coverage (Sq.Ft.) | 180°, 900 Sq. Ft |

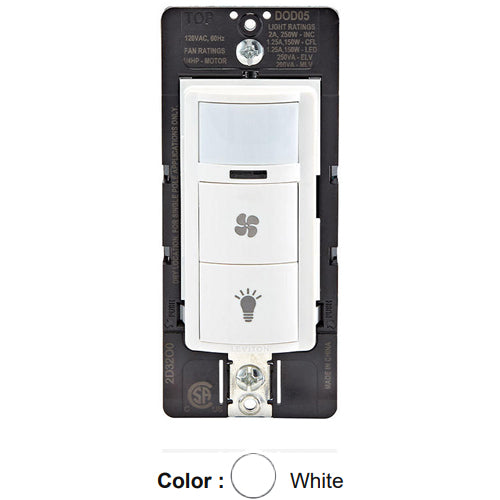

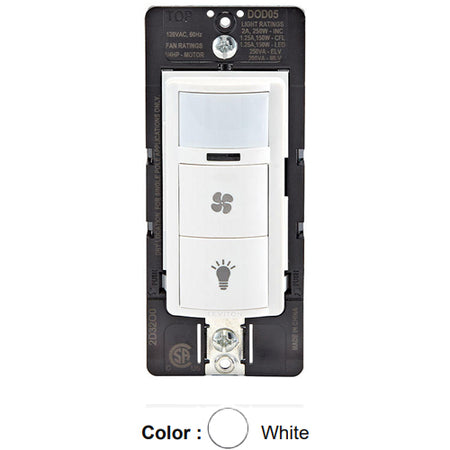

| Color | White |
| Sensor Technology | Passive Infrared |
| Sensor Type | Occupancy |
| Voltage |
120 VAC |
| Load Rating | Fan Load (Blue Wire): 1/4 HP Fan, 300W LED/CFL, 600W Incandescent/Halogen, 400VA MLV/ELV Light Load (Red Wire): 150W LED/CFL, 250W Incandescent/Halogen, 200VA MLV, 250VA ELV, 2A Resistive |
| LED Color | Green and Red |
| Switch | Relay |
| Switch Type | Single-Pole / Single Pole |
| Time Delay | 1M, 5M, 10M or 20M |
| Mounting Type | Wall Switch |
| Dimensions | W 1.73'' X D 0.95'' X H 4.13'' |
| Neutral | Optional |
| Wiring | Ground or Neutral Required |
| Certifications | CSA, California Title 24 |
| Warranty | 5-Year Limited |
