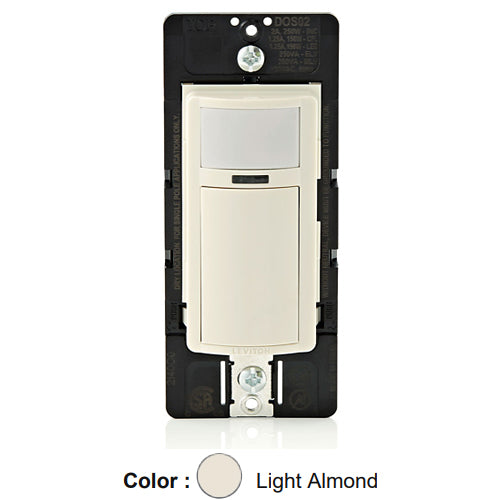

Leviton DOS02-1LT, Decora Wall Switch Passive Infrared (PIR) Motion Sensor, Relay Occupancy Sensor, Residential Grade, Single Pole, Auto-ON/Auto-OFF, 2A Resistive, Light Almond
Regular price
$26.56
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Decora Occupancy Motion Sensor Light Switch, 180° PIR Automatic-on Wallbox Sensor, Single Pole, 150W LED/CFL, 250W Incandescent/Halogen, 200VA Magnetic Low Voltage, 250VA Electronic Low Voltage, 2A Resistive, Wallplate Sold Separately, Can be used to comply with the California Title 24, Part 6, Automatic-off Controls and IECC.
- Ideal for pantries, closets, laundry rooms and basements
- Occupancy Sensor Mode default for Automatic ON/Automatic OFF operation. Can switch to Vacancy Mode for Manual ON/Automatic OFF
-
Provides 180° Field-of-View, 900 sq. ft. of coverage

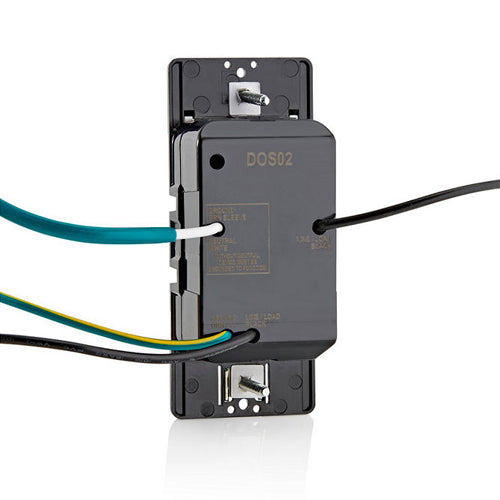

- Leaded terminals for easier installation
- Can be connected to a Neutral wire if present in the wallbox, or connected to ground wire if no Neutral wire is present in the wallbox
- Ambient light override prevents sensor from switching the lights ON when there is ample natural sunlight
- Adjustable delayed OFF time which can be set for 1 minute, 5 minutes, 10 minutes or 20 minutes
| Style Name | Decora |
| Switch | Relay |
| Time Delay | 1M, 5M, 10M, 20M |
| Auto-ON/Auto-OFF | Yes |
| Wallplate | Not Included |
| Grade | Residential |
| Coverage (Sq.Ft.) | 180°, 900 Sq. Ft |
| Color | Light Almond |
| Sensor Technology | Passive Infrared |
| Sensor Type | Occupancy |
| Voltage |
120 VAC |
| Load Rating | 150W LED/CFL, 250W Incandescent/Halogen, 250VA ELV, 200VA MLV, 2A Resistive |
| LED Color | Green and Red |
| Mounting Type | Wall Switch |
| Neutral | Optional |
| Pole | 1 |
| Wiring | Ground or Neutral Required |
| Certifications | CSA, FCC, Title 24 |
| Warranty | 5-Year Limited |
