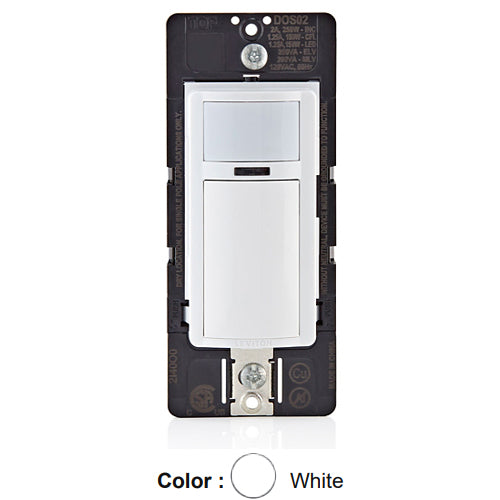

Leviton DOS02-LW, Decora Wall Switch Passive Infrared (PIR) Motion Sensor, Relay Occupancy Sensor, Residential Grade, Single Pole, Auto-ON/Auto-OFF, 2A Resistive, White
Regular price
$26.56
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Decora Occupancy Motion Sensor Light Switch, 180° PIR Automatic-on Wallbox Sensor, Single Pole, 150W LED/CFL, 250W Incandescent/Halogen, 200VA Magnetic Low Voltage, 250VA Electronic Low Voltage, 2A Resistive, Wallplate Sold Separately, Can be used to comply with the California Title 24, Part 6, Automatic-off Controls and IECC.
- Ideal for pantries, closets, laundry rooms and basements
- Occupancy Sensor Mode default for Automatic ON/Automatic OFF operation. Can switch to Vacancy Mode for Manual ON/Automatic OFF
- Provides 180° Field-of-View, 900 sq. ft. of coverage

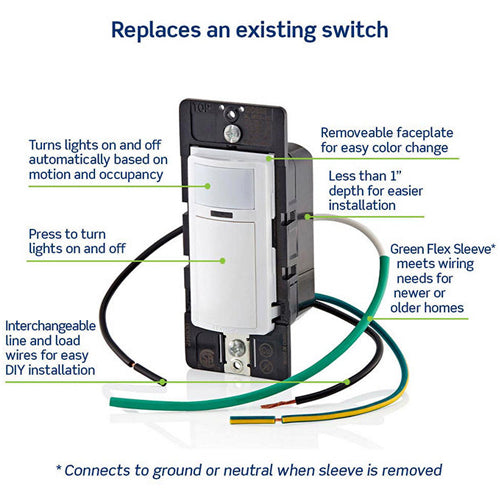

- Leaded terminals for easier installation
- Can be connected to a Neutral wire if present in the wallbox, or connected to ground wire if no Neutral wire is present in the wallbox
- Ambient light override prevents sensor from switching the lights ON when there is ample natural sunlight
- Adjustable delayed OFF time which can be set for 1 minute, 5 minutes, 10 minutes or 20 minutes
| Style Name | Decora |
| Switch | Relay |
| Time Delay | 1M, 5M, 10M, 20M |
| Auto-ON/Auto-OFF | Yes |
| Wallplate | Not Included |
| Grade | Residential |
| Coverage (Sq.Ft.) | 180°, 900 Sq. Ft |
| Color | White |
| Sensor Technology | Passive Infrared |
| Sensor Type | Occupancy |
| Voltage |
120 VAC |
| Load Rating | 150W LED/CFL, 250W Incandescent/Halogen, 250VA ELV, 200VA MLV, 2A Resistive |
| LED Color | Green and Red |
| Mounting Type | Wall Switch |
| Neutral | Optional |
| Pole | 1 |
| Wiring | Ground or Neutral Required |
| Certifications | CSA, FCC, Title 24 |
| Warranty | 5-Year Limited |
