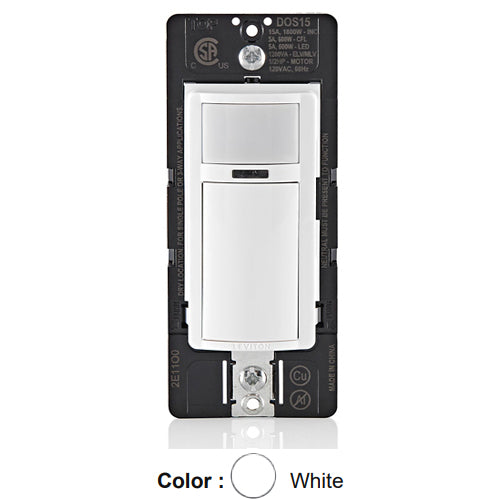

Leviton DOS15-1LZ, Decora Wall Switch Passive Infrared (PIR) Motion Sensor, Relay Occupancy Sensor, Residential Grade, Single Pole/Multi-Sensor/Multi-Way, Auto-ON/Auto-OFF, 1/2 HP Motor, 15A Resistive, White
Regular price
$60.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

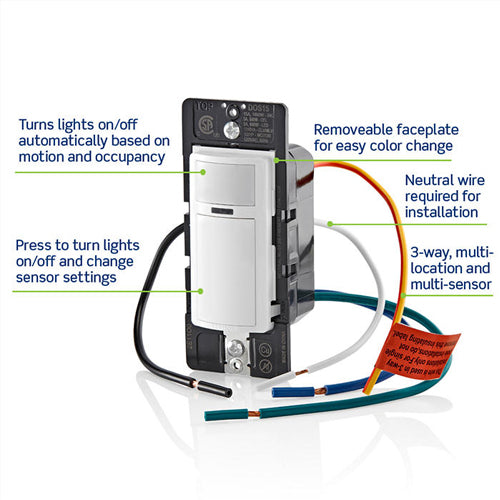

Decora Occupancy Motion Sensor Light Switch. 180° PIR automatic-on, automatic-off, single pole, 3-way or multi-location (multi-way) when used with DD0SR switch companions or multi-sensor with two DOS15 sensors, 600W LED/CFL, 1800W Inc/Halogen 1200VA ELV/MLV/FL, 1/2HP Motor, 15A Resistive, wallplate sold separately. Can be used to comply with the California Title 24, Part 6, Automatic-off Controls and IECC.
- Occupancy Sensor Mode default for Automatic ON/Automatic OFF operation. Can switch to Vacancy Mode for Manual ON/Automatic OFF
-
Provides 180° Field-of-View, 900 sq. ft. of coverage
- Leaded terminals for easier installation
- Single pole, 3-way or multi-location (multi-way) when used with up to four (4) DD0SR-DLZ and/or up to nine (9) DD0SR-01Z switch companions
- Multi-sensor with two DOS15 sensors
- Adjustable delayed OFF time which can be set for 1 minute, 5 minutes, 10 minutes or 20 minutes
| Style Name | Decora |
| Switch | Relay |
| Time Delay | 1M, 5M, 10M, 20M |
| Auto-ON/Auto-OFF | Yes |
| Wallplate | Not Included |
| Grade | Residential |
| Coverage (Sq.Ft.) | 180°, 900 Sq. Ft |
| Color | White |
| Sensor Technology | Passive Infrared |
| Sensor Type | Occupancy |
| Voltage |
120 VAC |
| Load Rating | 600W LED/CFL, 1800W Incandescent/Halogen, 1/2 HP, 1200VA ELV, MLV, FL, 15A Resistive |
| LED Color | Green and Red |
| Mounting Type | Wall Switch |
| Neutral | Yes |
| Wiring | Neutral Required |
| Certifications | CSA, FCC, Title 24 |
| Warranty | 5-Year Limited |
