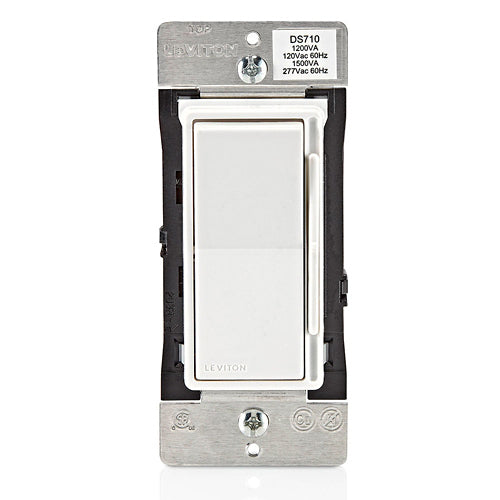

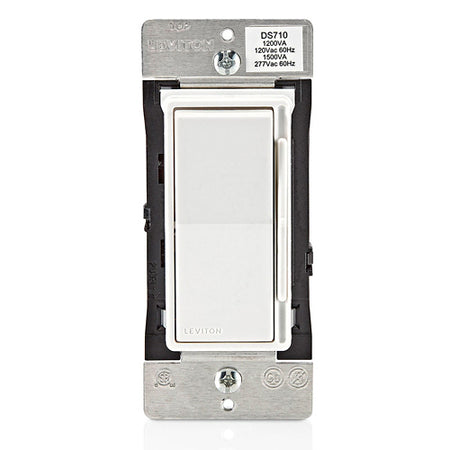

Leviton DS710-10Z, Decora Slide 0-10V LED/Mark 7 Fluorescent Ballast Dimmer, 120/277V, Single Pole or 3-Way, White
Regular price
$73.99
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Decora Slide Preset Electro-Mechanical 0-10V Slide Dimmer for use with LED or Fluorescent Ballasts and Power Supplies, suitable for use with Class 1 or Class 2 wiring, 1200VA @ 120VAC and 1500VA @ 277VAC Fluorescent, 10A LED/Electronic Ballast 120/277VAC, 60Hz, 50mAmps maximum sinking current, single pole or 3-way control when used with 3-way switch
- Use only with appropriate LED 0-10V dimmable power supplies/drivers, Advance Transformer 120/277V
- Dual voltage 120V/277V; 50mAmps maximum sink current
- The slide bar location preserves the selected brightness level when the dimmer is switched OFF

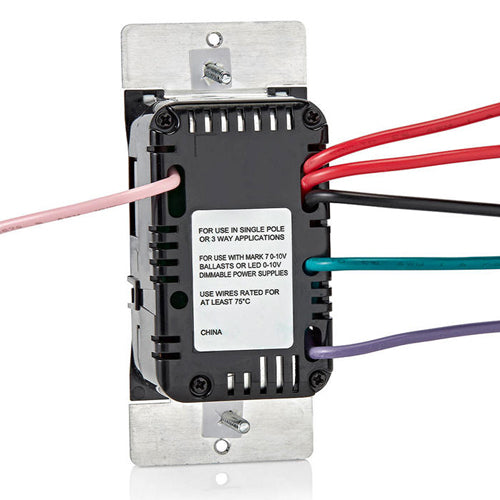

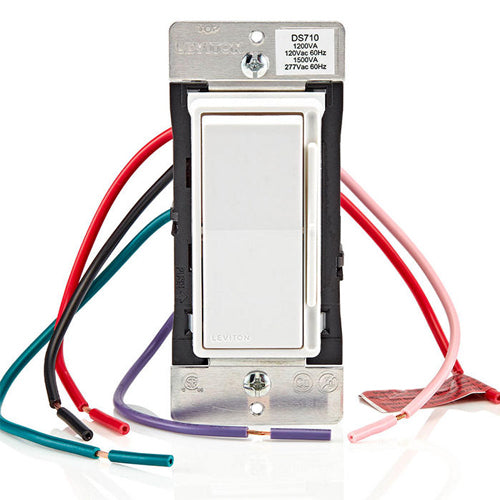

- Wired using leads, a Neutral wire is not required for operation
| Type | Dimmer |
| Style Name | Decora |
| Wallplate | Order Separately |
| Action | Rocker Switch for ON/OFF, Slide Bar for Lighting Level Control |
| Color | White |
| Voltage |
120/277 VAC |
| Frequency | 60 Hz |
| Load Rating | 1200VA-120VAC, 1500VA-277VAC, 10A LED 120VAC & 277VAC |
| Load Type | Electronic 0-10VDC Fluorescent |
| Preset | Slide bar preserves desired lighting level |
| Protection | Radio/TV Filter |
| Switch Type | Single-Pole & 3-Way |
| Certifications | cCSAus, NOM |
| Warranty | 5-Year Limited |
