Leviton DT204-1LW, 4-Hour Decora In-Wall Countdown Timer, 20 Amp, Single-Pole/3-Way/Multi-Location/Multi-Timer, 30 Min, 1-2-4 Hour, 1 HP/16A Fan/Motor, White
Regular price
$60.90
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

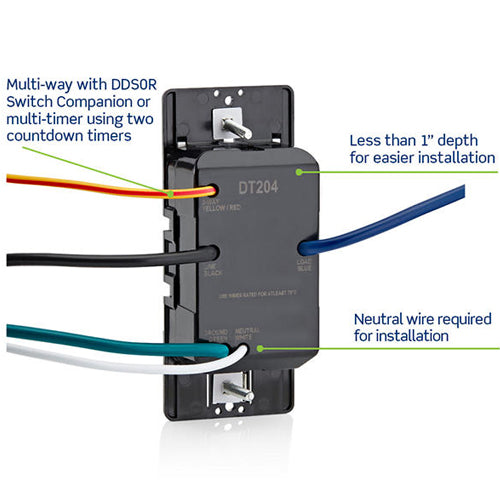

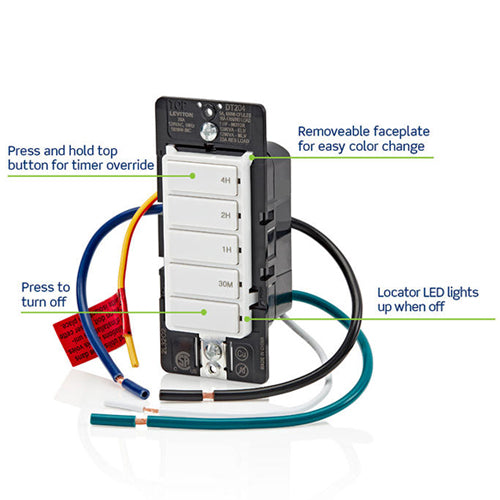

Leviton’s 4-Hour Countdown Timer Switch has 5-buttons with 30-minute, 1-hour, 2-hour and 4-hour time options and a manual off button. The larger load capacity can handle larger fixtures and fans. Single pole, multi-way using DD0SR Switch Companion or multi-timer using two DT204 countdown timers. 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage/Electronic Low Voltage/Fluorescent, 1 HP/16A Fan/Motor, 20A Resistive/16A Inductive. Requires a neutral wire for installation, wallplate sold separately
| Timer Type | Countdown |
| Style | Push Button |
| Device Type | Timer Switch |
| Function | Single-Pole (SP), 3-Way, Multi-Location, Multi-Timer |
| Wallplate | Not Included |
| Timer Options | 4-Hour (30M, 1H, 2H, 4H) |
| Grade | Residential |
| Color | White |
| Amperage | 20 A |
| Wattage Rating | 600W, 1800W, 1200VA |
| Voltage |
120 VAC |
| Companion Device | DD0SR , DT230 |
| Compatible Bulb Type | LED, CFL, Incandescent, Halogen, Magnetic Low Voltage, Electronic Low Voltage, Fluorescent, Fan, Motor, Inductive, Resistive |
| Grounding | Yes |
| Horsepower Rating | 1 HP |
| Mounting Type | In-Wall |
| Termination | Leads |
| Neutral Required | Optional |
| Optional Faceplates | DTKIT |
| Certifications | CSA, FCC, IC |
| Warranty | 5-Year Limited |
