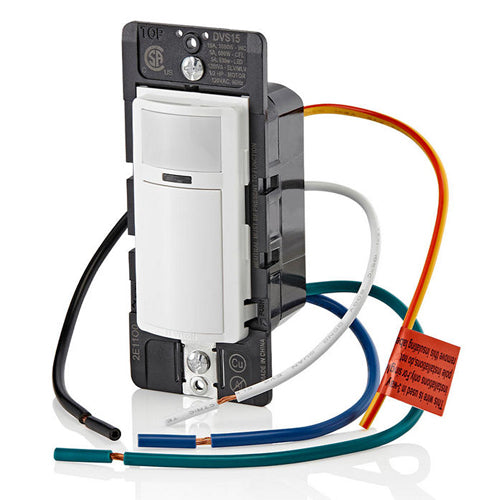

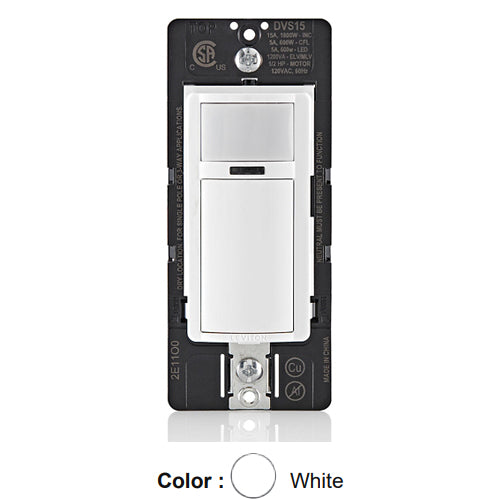

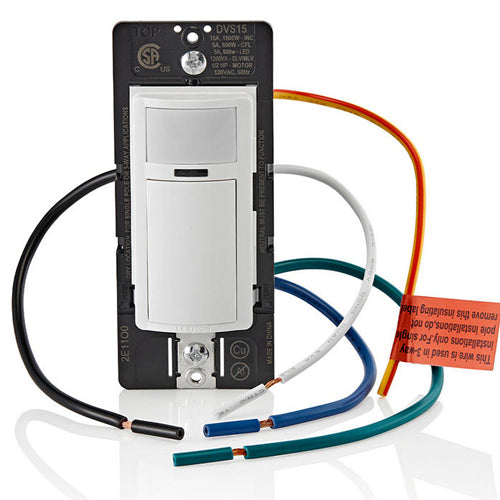

Leviton DVS15-1LZ, Decora Wall Switch Passive Infrared (PIR) Motion Sensor, Relay Vacancy Sensor, Residential Grade, Single Pole/Multi-Sensor/Multi-Way, Manual-ON, 1/2HP Motor, 15A Resistive, White
Regular price
$60.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Decora Vacancy Motion Sensor Light Switch. 180° PIR manual-on, automatic-off, single pole, 3-way or multi-location (multi-way) when used with DD0SR switch companions or multi-sensor with two DVS15 sensors, 600W LED/CFL, 1800W Inc/Halogen 1200VA ELV/MLV/FL, 1/2HP Motor, 15A Resistive, wallplate sold separately. Can be used to comply with 2019 California Title 24, Part 6 Vacancy Control Device Requirements
- Manual-ON/Automatic OFF operation
-
Provides 180° Field-of-View, 900 sq. ft. of coverage
- Leaded terminals for easier installation
- Can be connected to a Neutral wire if present in the wallbox, or connected to ground wire if no Neutral wire is present in the wallbox
- Ambient light override prevents sensor from switching the lights ON when there is ample natural sunlight
- Adjustable delayed OFF time which can be set for 1 minute, 5 minutes, 10 minutes or 20 minutes
| Style Name | Decora |
| Switch | Relay |
| Time Delay | 1M, 5M, 10M, 20M |
| Auto-ON/Auto-OFF | No |
| Wallplate | Not Included |
| Grade | Residential |
| Coverage (Sq.Ft.) | 180°, 900 Sq. Ft |
| Color | White |
| Sensor Technology | Passive Infrared |
| Sensor Type | Vacancy |
| Voltage |
120 VAC |
| Load Rating | 600W LED/CFL, 1800W Incandescent/Halogen, 1/2 HP, 1200VA ELV, MLV, FL, 15A Resistive |
| LED Color | Green and Red |
| Mounting Type | Wall Switch |
| Neutral | Yes |
| Wiring | Neutral Required |
| Certifications | CSA, FCC, Title 24 |
| Warranty | 5-Year Limited |
