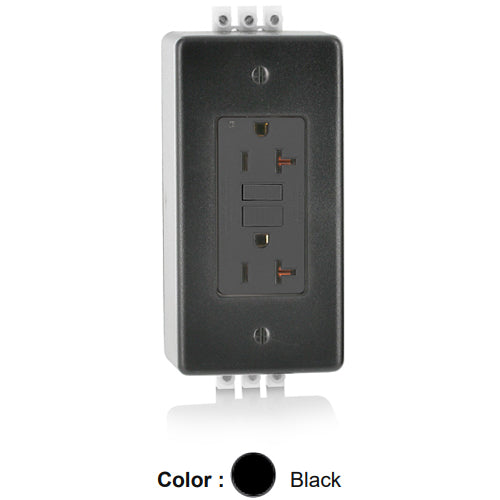

Leviton GFNT2-DIN, SmartlockPro Self-Test GFCI Duplex Receptacle, DIN Rail Mount, Indicator Light, Extra Heavy-Duty Industrial Grade, 20A 125V, NEMA 5-20R, 2-Pole, 3-Wire, Terminal Blocks, Self-Grounding, Black
Regular price
$157.01
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Mounting clip provides easy installation in equipment cabinets
- GFCI has two terminals blocks, one for the line side and one for feed-thru
- Terminal block accepts #22-#12 AWG conductors
- 10kA SCCR
- GFCI receptacle is Fed Spec W-C 596 rated
| Brand | SmartlockPro |
| Device Type | Duplex Receptacle Outlet |
| Feature | Power Indication |
| Function | GFCI |
| Grade | Extra Heavy-Duty Industrial Grade |
| Color |
Black
|
| Feed-Through | 20A |
| Amperage | 20 A |
| Voltage | 125 VAC |
| NEMA | 5-20R |
| Pole | 2 |
| Wire | 3 |
| Grounding | Self-Grounding |
| Enclosure Material | Polycarbonate |
| Face Material | PBT |
| Line Contacts | Brass |
| Termination | Back and Side Wired |
| Operating Temperature | -35°C to +66°C |
| Certifications | UL, CSA |
