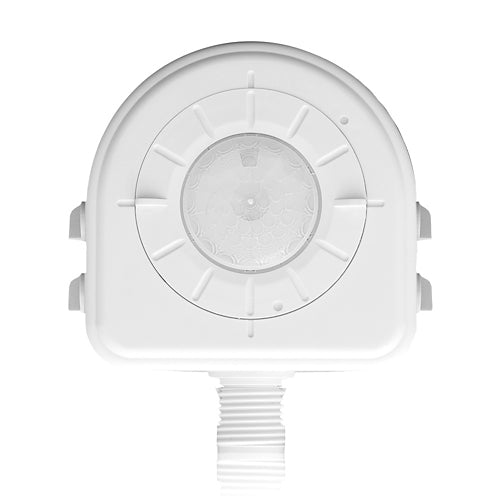

Leviton HB0LA-PDX, Occupancy Sensor with Dimmer, Fixture Mount, High Bay/Low Bay, PIR, 120-277V, 21'' Leads with OSFLO Adapter, White
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Occupancy Sensor, Assembly of an OSFLO Adaptor and an HB011-PDX, High Bay, Fixture Mount, lighting control with Daylight Harvesting PIR technology, Single relay with one (1-10VDC sinking current) control line for use to connect directly to low voltage control ballast. Examples i.e. Advance Mark VII or Leviton Sector 7, ballast. 21" Leads, 120-277V, 50/60Hz.
Occupancy Sensor, Fixture Mount Passive Infrared High/Low Bay, Time Delay: 30s-30m, (2) interchangeable, adjustable 360° lenses, the high bay PIR lens provides 1.5:1 spacing to mounting height coverage for 21-40 ft, the low bay lens provides 2:1 spacing to mounting height coverage for 13-20 ft, 120-230-277 or 347VAC, UL Listed, meets energy code requirements for ASHRAE 90.1 and Title 24.
| Product Type | Occupancy Sensor and Photocell |
| Sensor Technology | Passive Infrared (PIR) and Photocell |
| Sensor Type | Occupancy and Photocell |
| Feature | High Bay / Low Bay Dimming and Occupancy Sensing with Offset Adapter |
| Time Delay | 30s-30m |
| Grade | Commercial |
| Coverage (Sq.Ft.) | 8-40 FT |
| Pattern | 360° |
| Commissioning | Manual |
| Color | White |
| Voltage | 120-277 VAC |
| Dimming Technology | 0-10VDC |
| Frequency | 50/60Hz |
| Construction | High-impact, injection-molded plastic |
| Mounting Type | Fixture Mount |
| Sensor Mounting Configuration | External |
| Neutral Wire Connection | Required |
| Wiring | Line-Black, Load-Red, Neutral-White (21'' Leads) |
| Size | Height 1.58‘’ (40.13mm), Width 4.34‘’ (110.24mm), Length 4.44‘’ (112.78mm) |
| Environment | Indoor |
| Relative Humidity | 20% to 75% non-condensing |
| Application | Warehouses, Manufacturing facilities, production, Industrial areas, High ceiling applications |
| Certifications | CSA, UL, FCC |
| Warranty | 5-Year Limited |
