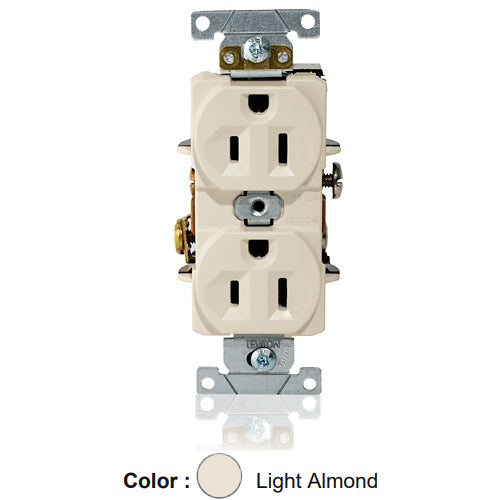

Leviton L5262-T, Standard Straight Blade Duplex Receptacle, Heavy-Duty Industrial Specification Grade, Indented Face, 15A 125V, NEMA 5-15R, 2-Pole, 3-Wire, Single Piece Ground Shunt, Back and Side Wire, Light Almond
Regular price
$37.94
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Equipment ground contacts and terminal are constructed of a single piece of brass
| Device Type | Duplex Receptacle Outlet |
| Grade | Heavy-Duty Industrial Specification Grade |
| Feature | Indented Face |
| Color | Light Almond |
| NEMA | 5-15R |
| Amperage | 15 A |
| Voltage | 125 VAC |
| Grounding | Self-Grounding |
| Pole | 2 |
| Wire | 3 |
| Body Material | PBT Polyester Blend |
| Mounting Screws | Triple-Drive Plated Steel |
| Strap Material | Steel (Galvanized G60) |
| Terminal Screws | #8 Triple-Drive Brass |
| Termination | Back and Side Wire |
| Wire Type | Stranded or Solid |
| Operating Temperature | -40°C to 75°C |
| Certifications | cULus, NOM-ANCE, RoHS |
| Warranty | 10-Year Limited |
